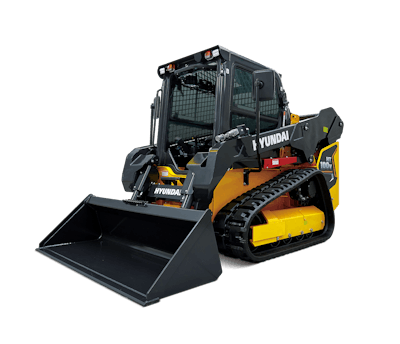

Hyundai HT100V Compact Track Loader at CONEXPO

The Hyundai HT100V has a rated operating capacity of 2,300-lbs. (1,220 kg) and is designed for construction, landscaping, agriculture and material handling applications.

The Hyundai HT100V has a rated operating capacity of 2,300-lbs. (1,220 kg) and is designed for construction, landscaping, agriculture and material handling applications.
The Hyundai HT100V has a rated operating capacity of 2,300-lbs. (1,220 kg) and is designed for construction, landscaping, agriculture and material handling applications.
Hyundai
Hd Full Color 1

Hyundai Construction Equipment Americas has announced the first availability in North America of a new compact track loader in the large-frame size class. The new HT Series model, which was on display at Hyundai’s booth at CONEXPO-CON/AGG, features a Tier 4 Final-compliant Hyundai engine that provides power while meeting stringent emissions standards.

“With the addition of the HS skid steer and HT compact track loader, Hyundai’s compact equipment lineup will serve even more customers in construction, landscaping, agriculture and material handling,” said Adam Ford, product manager, Hyundai Construction Equipment Americas. “Combined with Hyundai compact excavators, these Hyundai machines provide broader range of capabilities to contractors and other equipment users whose work requires powerful, dependable and affordable compact equipment.”

Ford also noted that the new HT machine is engineered to meet the demands for performance and durability, while satisfying environmental requirements.

Hyundai Engine

The new compact track loader is powered by a Hyundai HTI4 four-cycle, turbocharged, electronically controlled diesel engine. The new engine, designed and manufactured by Hyundai, meets Tier 4 Final and EU Stage V emissions standards and deliver 70-net-hp (52 kW) at 2,200 rpm.

The Hyundai HT100V has a rated operating capacity of 2,300-lbs. (1,220 kg) and its heaped bucket capacity is 0.58-yd.3 (0.44 m3).

Performance and Safety

Built on a sturdy platform, the new compact track loader provides a combination of features that translates to on-the-job performance.

Standard features include a multi-function joystick enabling operators to control all machine functions with their hands only; a vertical lift path that allows the boom to raise the bucket straight up to full height for stability, less spillage and lift height and two-speed travel enabling movement around the jobsite.

Operators can access standard control features, cab air-conditioning, a cabin, open or close sliding door that lets the operator work with the door opened or closed and LED working lights to illuminate the jobsite in reduced-visibility circumstances.

“Operators will also enjoy Ride Control, which comes standard on HS120V skid steer,” Ford said. “Owners will also appreciate the extra load retention and productivity they get from Ride Control.” He noted that Ride Control will be available for the HT100V CTL this fall.

The machine has a hydraulic quick coupler enabling the operator to change attachments safely from the cab.

Standard safety features of the Hyundai compact track loader include a rearview camera for operator awareness of jobsite hazards; an “escort system” that keeps the LED lights illuminated for 30 seconds after machine shutdown to give the operator a safe view of the jobsite when exiting the cab; emergency escape through the front door and an emergency boom-down feature that enables manual descent of the boom in the event of electrical system failure.

Optional Features and Hi MATE telematics

The optional high-flow hydraulic system provides extra capacity to run attachments that need an additional hydraulic boost, expanding versatility. Optional ride control reduces operator fatigue and material spillage when operating over rough surfaces.

Hyundai’s Hi MATE telematics system is available on the compact track loader. With Hi MATE, users can remotely evaluate machine performance, access diagnostic information and verify machine location.

Its geo-fencing capability protects equipment from theft or unauthorized use outside custom-defined boundaries.
