Caterpillar C2 Articulated Trucks

Rated payloads are 26.5 tons for the 725C2 and 31 tons for the 730C2 and 730C2 EJ with ejector-type body

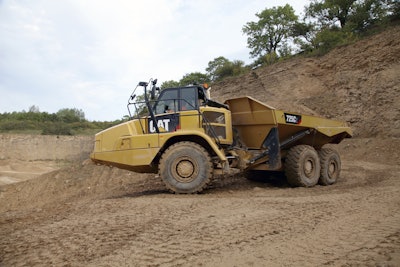

Cat 725C2 AT C10750176 56fc029c9a930
Caterpill 10210679

The 314-hp 725C2 and the 367-hp 730C2 and 730C2 EJ with ejector-type body offer rated payloads of 26.5 (725C2) and 31 tons.

  • C9.3 ACERT (725C2) and C13 ACERT Tier 4 Final engines
  • 6F/1R powershift transmission electronically modulates clutch engagement pressures for smooth, positive shifts
  • Advanced Productivity Electronic Control Strategy (APECS) system improves acceleration, maintains torque converter lock-up (and ground speed) during shifts, provides automatic speed holding and modifies shift points to match operating conditions
  • Engine-compression brake provides 60% more retarding force than previous models
  • Feature standard automatic traction control, full-time, six-wheel drive and wet disc clutch locks in the cross axle and inter-axle differential, as well as all-axle wet brakes
  • Front frame incorporates box section longitudinal beams, and the rear frame uses a four-plate box construction to reduce stress points
  • Three-point, oil/nitrogen front suspension and walking-beam rear suspension
  • Dump body uses high-strength Brinell HB450 wear-resistant steel and features a diverging flow design to promote clean dumping and minimize material carry-back
  • Spacious two-person cab with multi-adjustable air suspension seat for the operator, full-size forward-facing seat for the trainer, tilting/telescopic steering wheel, wrap-around dash and multi-purpose color display with feed from the rearview camera when activated
  • Electrohydraulic secondary steering system automatically activates in low pressure situations
  • Optional integrated Cat Production Measurement system

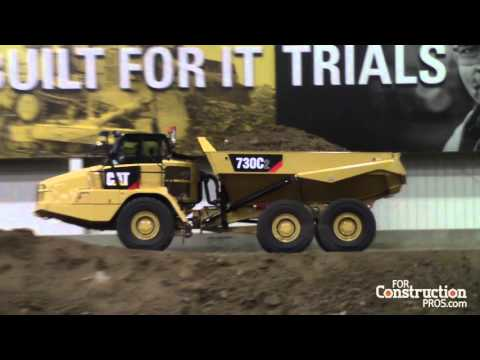

[VIDEO] Cat Adds Retarding Integrated Braking to C Series ADT Lineup

[VIDEO] How Cat C Series ADT Payload System Improves Efficiency

Brochure: Caterpillar 725C2 Articulated Truck

Brochure: Caterpillar 730C2 Articulated Truck
