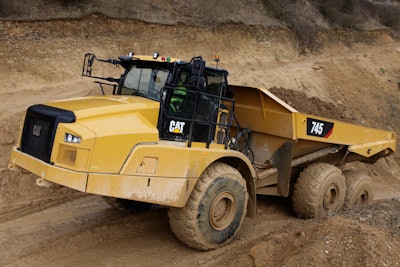

Offering a 45.2-ton rated payload capacity, the 163,296-lb. Cat 745 articulated truck features a cab design completely re-engineered from the inside-out. The new external "spinal" ROPS structure boasts bonded rear quarter glass that eliminates the structural pillar to give the operator a substantial improvement in visibility from the cab. Upon cab entry, the "wake up" feature initiates machine displays as the door is opened, while the lighter/stronger cab door offers shut assist for improved sealing. The quieter cab design lowers inside sound levels by 5 dB at the operator’s ear.
Infrared glass reduces solar heating inside the cab, while left- and right-hand sliding windows increase ventilation and improve external communication. More vents positioned above and behind the operator enables the new automatic climate control (HVAC) system to more efficiently heat and cool the cab. The heated/cooled seat provides more setting adjustments to dial in personalized operator comfort, while a new flip-up/down passenger seat offers added comfort cushioning. Cab-mounted mirrors and integrated payload lights offer improved visibility around the truck as well as payload levels for the loader operator.
- Combined transmission and hoist lever provides single-lever control over truck speed and body hoisting functions
- Choice of manual or fully automatic assisted hoisting control
- Directional gear shifting protection brings the machine safely to a stop when transitioning from forward to reverse and vise-versa
- Cat Detect with Stability Assist system audibly and visibly warns the operator if tractor or trailer unit has reached an angle threshold where it is in risk of tipping
- Fully Advanced Automatic Traction Control proactively applies the differential locks prior to any wheel spin
- Terrain-based throttle smoothing prevents surging when traveling over extremely rough terrain and the operator is unable to keep steady pressure on the accelerator pedal
- 504-hp Cat C18 ACERT Tier 4 Final engine with new economy mode
- Includes the CX38B High Density Power Shift transmission, permanent six-wheel drive, automatic retarding control, hill assist and Waiting Brake system
- Cat Connect PAYLOAD technology and available Cat Production Measurement system
