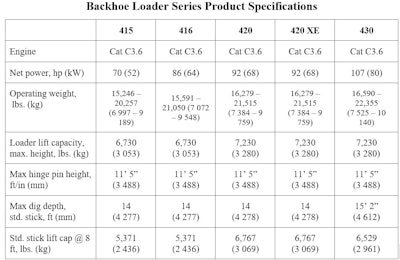

Building on the F2 Series models, Caterpillar's new line of backhoe-loaders consists of the 14- and 15-ft. size class 415, 416, 420, 420 XE and 430 models, replacing the 415F2, 416F2, 420F2, 420F2 IT and 430F2 machines, respectively. The new models offer similar platforms throughout the line to deliver component commonality and operating similarities throughout range. These machines display the new Cat Trade dress and nomenclature, which removes model suffixes.

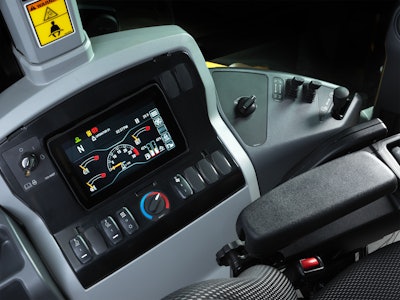

A redesigned operator display incorporates analog machine gauges with a color LCD information display that is soft key controlled for simple navigation. Informational icon pop-ups offer quick navigation between operating modes, while full text diagnostic descriptions simplify machine troubleshooting and maintenance. The redesigned security system disables the engine, transmission and hydraulic system until a valid passcode is entered via the LCD operator control screen or a machine-specific Bluetooth key is detected. As with the F2 Series, pilot controls are standard on the 420 and 430 and optional on the 415 and 416 models. New seat controls and touchscreen LCD operator display are now standard on the 420 XE.

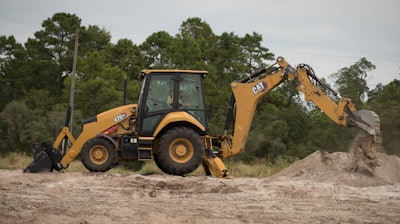

New boom cylinders on the 420 XE, as well as the 420, offer up to 15% more boom lift capability to elevate operating performance. Seat-mounted controls on the 420 XE swivel with the operator to control loader and backhoe functions for more ergonomic and comfortable operation. This arrangement enables Dual Mode for more efficient machine repositioning. Dual Mode also allows the operator to sit at an offset angle while controlling the machine for improved visibility.

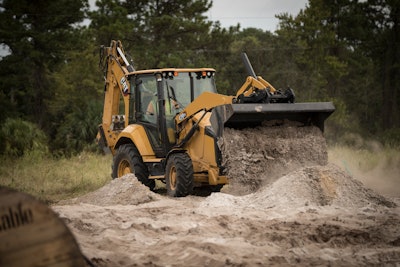

Built with single-tilt loader arms, the 420 XE features electronic loader controls that enable selectable parallel lift for increased material retention in loading applications. Programmable loader kickout and return-to-dig is easily set via the LCD operator display with touchscreen control and takes the guess work out of the equation when loader height and bucket angle adjustments are critical.
The 420 XE will make its North American debut at CONEXPO-CON/AGG 2020 in Caterpillar’s indoor North Hall exhibit #N10647 with June 2020 availability.
All five units are powered by a Cat C3.6 engine that meets Tier 4 Final emission standards. The engine consists of a service-free Selective Catalytic Reduction (SCR) emission solution with diesel exhaust fluid (DEF) and diesel particulate filter (DPF) for the 416 to 430 models, while the 415 requires only the DPF. The new engine delivers up to 10% improved fuel economy over its predecessor. All models feature standard four-wheel drive with rear differential lock for improved traction in poor ground conditions.
Adjustable auxiliary hydraulic flow to the backhoe allows machine hydraulics to be fine-tuned to meet the operating specifications of hammer, thumb and auger attachments. To increase machine utilization, the new line can be equipped from the factory or as a field installed kit with an optional Integrated Tool Carrier (IT) loader coupler for fast tool changes.
Information provided by Caterpillar and edited by Becky Schultz.
