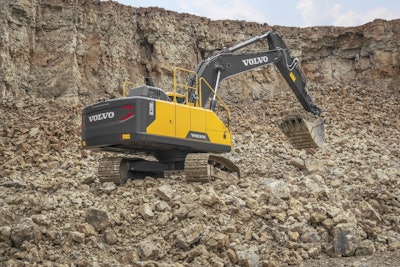

Volvo EC220E Crawler Excavator

New excavator builds on the previous D-Series model with reduced emissions and fuel consumption, plus enhanced power and productivity.

Volvo EC220E 552e957a8a8eb
Volvo Iron Mark

The 22-ton EC220E is fitted with a 172-net-hp Volvo D6 Tier 4 Final engine, fully optimized hydraulics system and ECO mode that facilitate reduced emissions and fuel consumption, as well as enhanced power and productivity.

  • Fuel efficiency improved from previous D-Series model by 5%
  • 22-ft. 1-in. maximum digging depth, 32-ft. 7-in. maximum digging reach and 33,500-lbf. maximum bucket breakout force
  • Incorporates auto engine shutdown, a boom float function
  • Ergonomically designed HMI (human machine interface) can be fine-tuned to operator preference
  • Optional sideview camera in addition to the rearview camera to cover the visual blind spots
  • X-shape lower frame enables even weight distribution for increased stability and durability
  • Heavy-duty undercarriage creates optimal tractive force in demanding terrain
  • Boom and arm design includes internal plates positioned to support pressure points
  • Radiator, charged air cooler and hydraulic oil cooler situated side-by-side to maximize efficiency, reduce blockages and aid cleaning
  • CareTrack telematics system provides a wide range of machine monitoring information
  • Password-protected attachment management system includes presets and permits hydraulic flow and pressure to be adjusted (set or memorized) for up to 20 different attachments
