Volvo ECR145E & ECR235E Crawler Excavators

Volvo's E-series short swing crawler excavators feature four integrated work modes letting the operator choose the best mode for the application

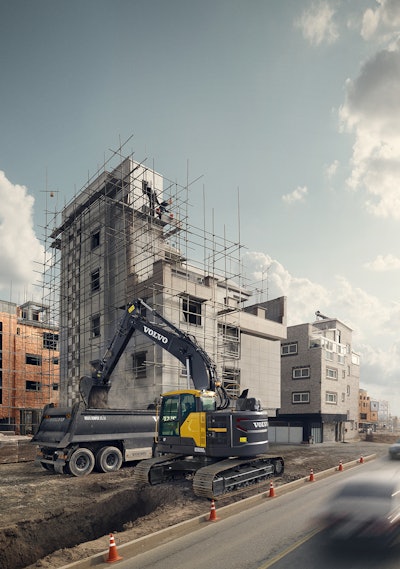

Volvo ECR145E excavator 55ae6a2d27386
Volvo Iron Mark

Volvo's E-series short swing crawler excavators — ECR145E and ECR235E — feature four integrated work modes (Idle, Fine, General or Heavy) letting the operator choose the best mode for the application.

  • Center-positionined boom and compact swing radius
  • Auto idle reduces engine speed to idle when controls are inactive for a pre-set amount of time
  • Optional auto engine shutdown automatically turns off machine if left to idle for too long
  • Optimized hydraulics system, fully electronic control system and ECO mode combine to reduce flow and pressure losses and improve fuel consumption
  • Password protected attachment management system for storage of up to 20 different attachment settings
  • Can be equipped with general purpose or heavy-duty buckets
  • Volvo Tier 4 Final engines; 119 hp (ECR145E) and 172 hp (ECR235E)
  • Newly designed cab with large front and side windows for high visibility
  • 8-in. LCD monitor with keypad
  • Bluetooth available
  • Breakout force: 18,100 lbf. (ECR145E); 28,100 lbf. (ECR235E)
  • Bucket capacity:  0.33-1.07 cu. yd. (ECR145E); 0.47-1.88 cu. yd. (ECR235E)
  • Max digging reach: 27 ft. 5 in. (ECR145E); 32 ft. 5 in. (ECR235E)
  • Max digging depth: 18 ft. 2 in. (ECR145E); 22 ft. 2 in. (ECR235E)
