Case CX130D and CX160D Excavators

New models drive operator productivity through faster cycle times, powerful hydraulics and greater fuel efficiency

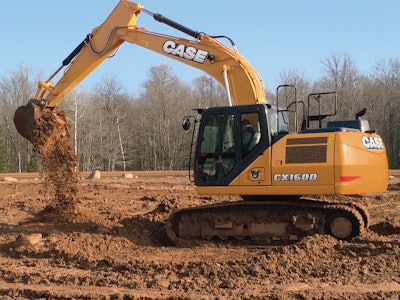

CASE CX160D excavator 5668a8e5da2e9
Caseconstructionequipment 10072354

The 29,131-lb. CX130D and 38,391-lb. CX160D are designed to provide significant operational gains, including up to 5% faster cycle times, improved responsiveness and multifunctional controls. The 102-hp CX130D offers 20,233 to 21,357 ft.-lbs. of bucket digging force, and the 112-hp CX160D delivers 25,179 to 26,527 ft.-lbs. of bucket digging force. Both models employ an SCR Tier 4 Final solution that provides up to 8% greater fuel efficiency without sacrificing power and without requiring a diesel particulate filter.

A new electronically controlled hydraulic pump and larger control and solenoid valves boost breakout forces, increase lifting strength and improve responsiveness. These features combine with the CASE Intelligent Hydraulic System to make the best use of the machine’s hydraulic power and momentum, resulting in added strength and fuel efficiency.

The Intelligent Hydraulic System includes four integrated control systems:

  1. Boom Economy Control (BEC), which reduces RPMs by using gravity during boom down and swing
  2. Auto Economy Control (AEC), which lowers RPMs during idle and automatically shuts down the engine after a preset idle time
  3. Swing Relief Control (SWC), which reduces hydraulic power at the swing start; and
  4. Spool Stroke Control (SSC), which adjusts hydraulic pressure during digs

Features include:

  • Speed Priority, Heavy and Automatic working modes
  • Include a stronger arm and boom and a thicker steel undercarriage with a single-slope design to reduce dirt accumulation and ease cleaning
  • Optional front dozer blade (CX130D)
  • Standard Free Swing for improved craning, laying or lifting of offset loads, oil sample ports, easy control pattern selection, fully adjustable operator station with standard heated air-ride seat and joystick controls
  • Also include a standard pressurized, iso-mounted cab, Bluetooth radio and rearview camera that feeds into the units' 7-in. widescreen monitor
  • CASE ProCare includes a three-year Advanced CASE SiteWatch telematics subscription, three-year/3,000-hour full-machine factory warranty and a three-year/3,000-hour planned maintenance contract
  • Optional LED working light package with six LED lights (two front, two rear and one on each side) and a side-view camera
