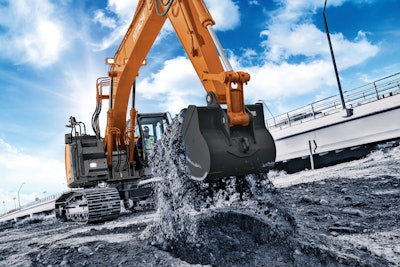

Hitachi ZX135US-6 and ZX245USLC-6 Ultrashort Excavators

The 31,500-lb. ZX135US-6 and 56,830-lb. ZX245USLC-6 reduced tailswing excavators feature 101- and 159-hp Isuzu Tier 4 Final engines that do not require a diesel particulate filter.

• 19-ft. 7-in. and 21-ft. 9-in. maximum dig depths and 29-ft. 1-in. and 33-ft. 2-in. maximum dig reach
• Hydraulic boost system and enhanced boom recirculation generate aggressive boom and arm speed, returning the arm to dig faster to move more dirt in a day
• ZX245USLC-6 features a three-pump hydraulic system that provides even more flow
• High Productivity (H/P), Power (PWR) and Economy (ECO) work modes and auto-idle and auto-shutdown features enhance fuel efficiency
• Standard factory installed auxiliary hydraulics with programmable attachment modes and proportional control
• Unobstructed all-around visibility via a wide expanse of front, side and overhead glass and mirrors, plus a standard rearview camera
• Sculpted mechanical suspension high-back seat with an air-suspension heated seat standard for the ZX245USLC-6
• Automatic, high-velocity bi-level climate-control system with automotive-style adjustable louvers

Video: Hitachi Ultrashort Class Excavators
