JCB 131X and 150X Tracked Excavators

Models offer enhanced performance and dependability matched with optimal comfort, easy control and longer service intervals.

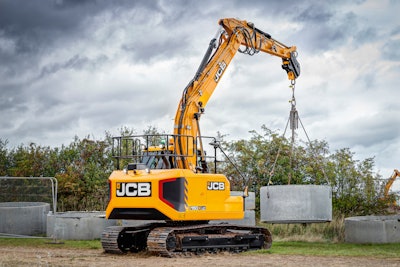

Jcb 150 X Excavator
Jcb Logo 10825275

The JCB 131X and 150X tracked excavators offer enhanced performance and dependability matched with optimal comfort, easy control and longer service intervals. The 131X is equipped with the 74-hp JCB EcoMAX engine that requires no replaceable diesel particulate filter (DPF) or diesel exhaust fluid (DEF). The 150X is powered by the 109-hp EcoMAX engine that requires no replaceable DPF.

  • 150X equipped with a larger Kawasaki hydraulic pump that can run at lower engine speeds, allowing 6% percent more productivity from every gallon of fuel.
  • Larger bucket cylinder on the 150X delivers an 11% increase in bucket tearout force
  • Power boost duration increased from 3 seconds to 9 seconds, allowing maximum bucket and dipper tearout for longer periods
  • Breakout force on the 131X increased to 22,931 lbf.
  • Auto Idle and Auto Engine Stop features contribute to fuel savings
  • Sealed and pressurized CommandPlus Cab is 15% larger and includes an integrated ROPS frame and reduced in-cab noise of 67 dB(A)
  • Cab features comfortable Grammer seats, servo levers mounted on the seat frame. redesigned foot pedals, footrests and tracking levers and a 7-in. monitor with automotive-style rotary controller
  • Hydraulic oil cooler size increased by 15% for enhanced cooling performance
  • Revised counterweight boasts purpose-designed impact points on the corners and along the lower edge
  • Fuel and hydraulic tanks mounted inside secondary body panels
  • Available tiltrotator-ready and/or wired for GPS and machine control systems from Topcon, Leica and Trimble
