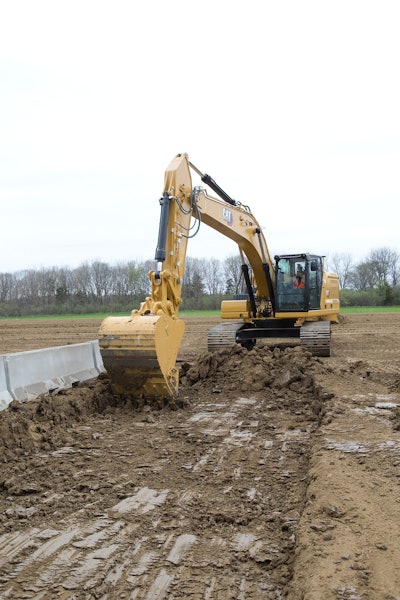

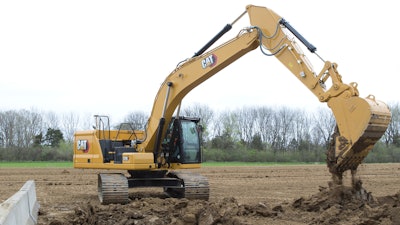

The 26-ton class 326 Next Generation Excavator was developed to help contractors be more successful on their jobs, operating across a wide range of applications. The machine offers standard technology, lower operating costs, optimal cab comfort, standard safety features and enhanced performance. It utilizes a number of standard technologies such as grade control, payload and e-fence to help the operator achieve greater levels of productivity, enhanced safety, improved accuracy and overall greater efficiency .

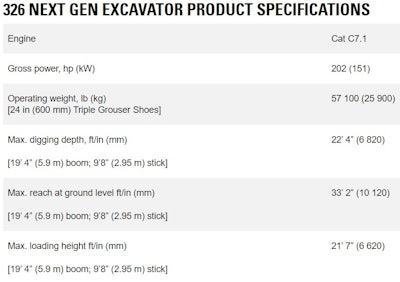

- Operating weight of 57,100 lbs. with a maximum digging depth of 22 ft. in. and maximum reach of 33 ft. 2 in.
- 202-gross-hp Cat C7.1 engine provides up to 15% lower fuel consumption compared to the F Series
- Advanced hydraulic system enables 12% improvement in swing torque and SMART-mode operation to automatically match engine speed and hydraulic power to digging conditions
- Optional Smartboom allows the boom to lower freely without using pump flow
- Remote start via a Bluetooth key fob or Operator ID function for operator-specific programming of power mode and joystick preferences
- 8-in. high-resolution touchscreen monitor delivers intuitive navigation through the menus and includes a digital version of the operator’s manual
- Standard Cat Grade with 2D system upgradeable to Cat Grade with Advanced 2D or 3D
- Standard Cat Payload onboard weighing system
- Comfort, Deluxe and Premium cab options all featuring advanced viscous mounts to reduce cab vibration up to 50%
