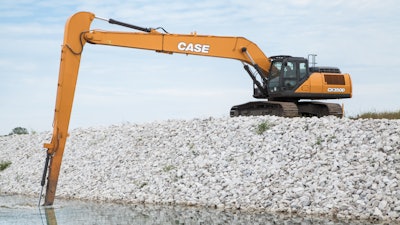

CX350D LR Long Reach Excavator

Case's CX350D LR features an elongated boom and arm and additional counterweight for increased digging capabilities in deep or long-distance digging applications.

• 268-hp Tier 4 Final diesel engine with low-maintenance selective catalytic reduction (SCR)
• Electronically controlled pump, larger control valve and multiple advanced sensors
• CASE Intelligent Hydraulic System with four integrated control systems: Boom Economy Control (BEC), Auto Economy Control (AEC), Swing Relief Control (SWC) and Spool Stroke Control (SSC)
• Three working modes: Speed Priority, Heavy and Automatic
• Undercarriage with single-slope design

• Heated air-ride seat
• Bluetooth radio
• Rear and side-view cameras
• Free Swing
• Easy pattern selector for ISO or SAE controls
• Fully adjustable operator station
• Optional LED working light package and optional CASE Max View display package
• Covered under CASE ProCare

• Maximum dig radius: 61 ft. 3 in.
• Maximum dig depth: 46 ft. 3 in.

• Bucket digging force: 24,500 ft. lb.

• Operating weight: 88,200 lb.
