9R/9RT Scraper Series Tractors

Six models in the 460 to 560 hp range get new tracks, air suspension, cab and standard powershift transmissions

John Deere 9560RT Scraper Tractor
John Deere 9560RT Scraper Tractor
Johndeere 10073478

The three track models in John Deere's new 9R/9RT Scraper Special Series Tractors -- the 9460RT, 9510RT, and 9560RT -- get a new Durabuilt 5500 Series scraper rubber track. Three new wheeled models -- the 9460R, 9510R, and 9560R -- share other enhancements, including a new cab and standard Efficiency Manager powershift transmissions. The line is powered by the Tier-4-Interim 13.5L PowerTech PSX engine in ratings from 460 to 560 hp.

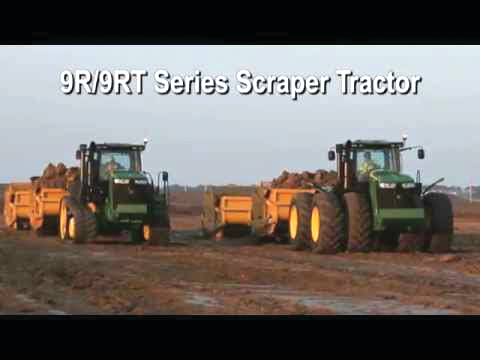

Video: Action Video of Deere 9R/9RT Tractor Suspension

The Durabuilt 5500 rubber track is a four-ply belt 30-ins. wide. Deere reinforced the track with a heavy-duty main cable and optimized it for puncture resistance.

Deereincorporated its powershift transmission (PST) with Efficiency Manager as base equipment on all 9R/9RT Scraper Special Tractors. A thumb wheel on the shift lever allows the operator to dial in ground speed whenever the tractor is not loading in the cut. Efficiency Manager takes advantage of continuous communication between the engine and transmission controllers to deliver maximum fuel efficiency.

Improvements to the cab include a 10% increase in volume, 7% more glass area, and four times more storage than the previous CommandView cab. The right-hand console was removed and the functions relocated to the redesigned CommandARM, including a new 7-inch colorCommandCenter display. The CommandArm provides fingertip controls of throttle, transmission and some control valves.

  • AirCushion suspension automatically isolates the front chassis on harsh terrain
  • Common hydraulic, transmission and axle oil reservoir supplies pressurized, cooled and filtered axle lubrication
  • Two hydraulic oil filters double the service interval to 1,500 hours
  • Enhanced fender coverage reduce window-cleaning time
