Cat 140 GC Motor Grader

Cat incorporates the 140 GC Motor Grader with premium features.

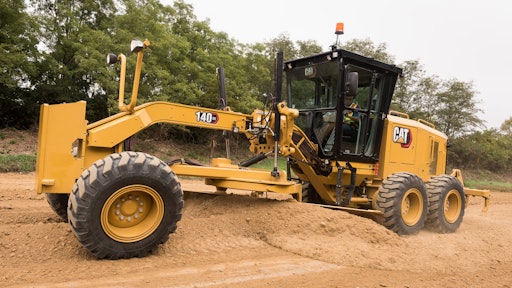

Cat 140 Gc Mg Cm20181024 32036 20067
Caterpill 10210679

The 140 GC motor grader features a 147-hp Cat C7.1 Tier 4 Final engine, 6F/3R automatic power-shift transmission and precisely designed hydraulic system to ensure balanced performance in all operating situations.

  • Standard 12-ft. moldboard or 14-ft. moldboard option
  • Drawbar circle moldboard includes replaceable wear strips
  • No-spin differential activates with no operator input to increase traction in poor ground conditions and protect drivetrain components
  • ECO operating mode and demand-fan reduce fuel consumption
  • Steering wheel and lever controls with adjustable control console
  • Standard static seat with mechanical or air suspension seat upgrade options
  • All-wheel-drive option provides added performance in rough terrain or poor underfoot conditions
  • Oil-bath, multi-disc service brakes hydraulically-actuated for smooth, predictable braking
  • Optional Digital Blade Slope Meter and Cat Detect with Vision System
  • Other options include a reversing fan, circle-drive slip clutch, heating and cooling system option, low-profile cab, Circle Saver, secondary steering system and guarding package
  • Variety of Cat attachments including scarifiers, rippers and front blades

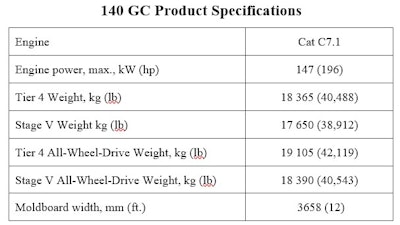

Caterpillar 140 Gc Specs
