Vanguard Expands EFI with E-Governing to Small Block Engine Line

Vanguard expands its lineup of electronic fuel injection offerings to include a horizontal-shaft Small Block V-Twin engine.

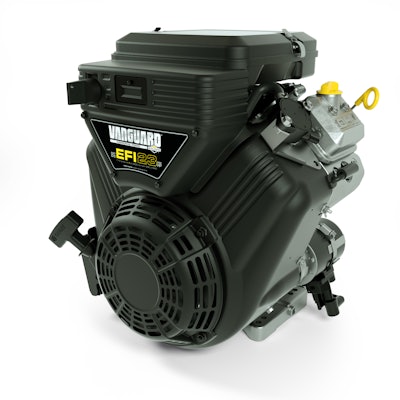

Vanguard Small Block Efi Rf
Dbf17cbe

Vanguard expands its lineup of electronic fuel injection offerings to include a horizontal-shaft Small Block V-Twin engine. The Small Block engine features an open-loop EFI system with electronic governing engineered for the demands of the commercial construction and rental markets. With the addition of this engine, Vanguard EFI is now available on four engine platforms across nine horsepower ratings varying in output from 23 to 37 gross horsepower*.

Vanguard’s Small Block V-Twin engines join the BIG BLOCK EFI engines for use in industrial and utility applications. The Small Block engines feature an open-loop system, reducing costs while still providing the core benefits of EFI. Vanguard engineered the Small Block system to deliver fuel based on operator throttle inputs, shifting the system’s primary benefits to power delivery and throttle response, making it ideal for generators and general purpose equipment.

  • Vanguard designed the electronic governing system to optimize usable power while providing more responsive and efficient delivery.
  • The e-governing also improves shock load acceptance and speed control, reducing engine droop to near zero.
  • The Small Block EFI engines feature a battery-less backup recoil start for ultimate reliability, even if the battery is dead. The recoil start uses energy generated by the recoil system to power the engine control unit and fuel system as opposed to relying only on the battery for electricity.
  • Additionally, the open-loop EFI system is calibrated for automatic altitude compensation.

*All power levels are stated as gross horsepower at 3,600 rpm per SAE J1940.
