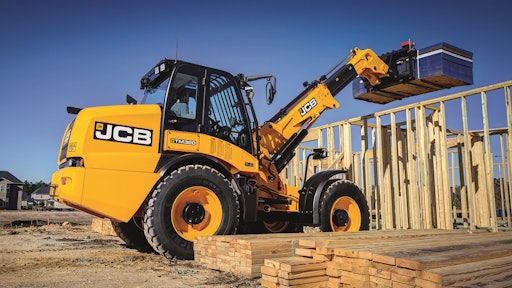

JCB TM320 Telescopic-Boom Wheel Loader

The TM320 combines the central driving position and all-round visibility of a wheeled loading shovel with the reach and lift versatility of a telescopic handler.

• 7,055-lb. lift capacity available to the full 17-ft. lift height
• 3,585-lb. maximum lift capacity at full 10-ft. forward reach ahead of the front wheels
• 125-hp JCB EcoMAX 4.4L engine meets Tier 4 Final emissions without a DPF
• Four-speed powershift transmission can be operated in automatic mode or manually
• 25-mph maximum speed
• Articulated steer wheeled loader chassis
• Full-color instrument display enables daily checks for engine oil, coolant and washer fluid levels to be completed from the driver’s seat during engine startup
• Options include the Auto Smooth Ride System boom suspension and hydraulic reversible cooling fan
