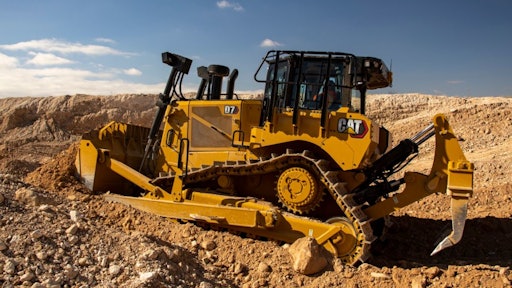

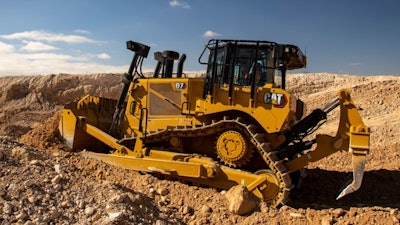

Caterpillar D7 High Drive Dozer

The Cat D7 Dozer delivers improved performance and productivity-boosting technology.

The Cat® D7 moves up to 8% more material per hour than the D7E, with about 6% more weight and 12% more horsepower. Blade capacity is increased by 10%, and the elevated sprocket undercarriage delivers better ride and balance, as well as increased penetration force.
The Cat® D7 moves up to 8% more material per hour than the D7E, with about 6% more weight and 12% more horsepower. Blade capacity is increased by 10%, and the elevated sprocket undercarriage delivers better ride and balance, as well as increased penetration force.
Caterpill 10210679

The new Cat® D7 dozer offers high drive undercarriage design, increased performance and an array of easy-to-use technology features to help operators get the most from their bulldozers.

  • A fully automatic 4-speed transmission offers optimal fuel and dozing efficiency, plus ease of operation
  • At 265 hp (197 kW) and an operating weight of 65,644 lbs. (29,776 kg), the new D7 dozer replaces the D7E
  • The D7 moves up to 8% more material per hour than the D7E, with about 6% more weight and 12% more horsepower
  • Increased blade capacity of 10%

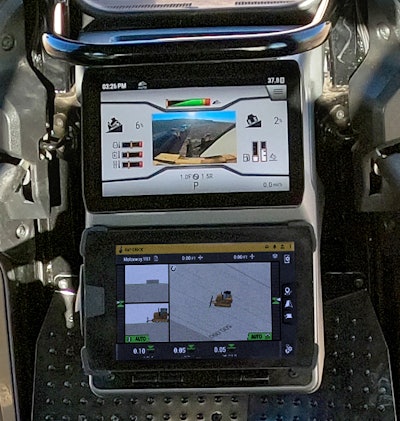

  • Cat D7 Dozers, Main And Grade Displays Cm20200129 6e650 1c560Elevated sprocket undercarriage delivers better ride and balance, as well as increased penetration force
  • Redesigned cab, common with the D5 and D6/D6 XE, improves comfort and productivity
  • Easy-to-use 10-in (254-mm) touchscreen operator interface
  • Standard High Definition rearview camera shows prominently in the main display
  • ARO with Assist is a grade-ready technology option bundled with basic blade control and a new set of assist features that just work in the background to help operators get more done in less time
  • Customers can also add factory-integrated Cat GRADE with 3D
  • Remote Control Ready
  • Cat COMMAND for Dozing offers line-of-sight (LOS) control using an over-the-shoulder console, or a non-line-of-sight (NLOS) option using the Cat Command Station to run the machine remotely
  • Cat LINK telematics technology offers a range of security, accessibility and management features
  • The D7 is available in Standard or Low Ground Pressure (LGP) configurations, with a variety of blade and track shoe choices to optimize the machine for the intended application
  • The D7 can also be ordered with specialized guarding to take on the challenges of Waste/Landfill work and Forestry/Land Clearing. In addition to machine protection against impacts and airborne debris, these specialty dozers can be ordered with an impact-resistant cab, application-specific undercarriage and a specialty blade.

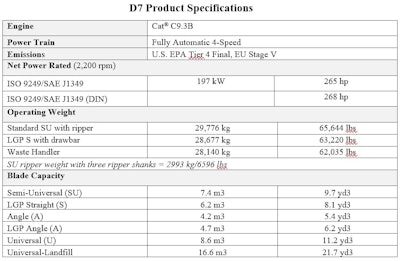

Caterpillar D7 Specs
