Next Generation Cat 325 Medium Excavator Offers a Compact Radius Design

The Cat 325 Excavator combines efficient design and advanced technology aimed at boosting performance, productivity and safety on jobsites.

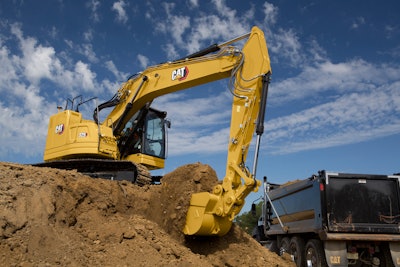

Cat 325 Excavator

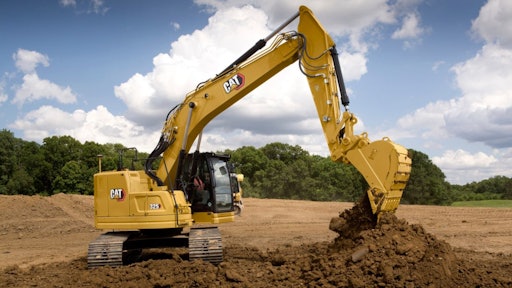

Cat 325 Excavator
Caterpill 10210679

The new Cat® 325 hydraulic excavator features a compact radius design, making it ideal for working in tight spaces. It delivers easy-to-use technologies to reduce operator fatigue and boost efficiencies. The new excavator also offers:

  • Reduced fuel consumption
  • Lower maintenance costs
  • Improved operator comfort

The 325 introduces many new features designed to improve versatility. Due to the ever-growing restrictions on transport requirements, two new counterweights are now available:

  • An 8.3 ton, designed to maximize lifting performance
  • A 4.9 ton, designed to contain the overall machine weight where more stringent transport limits are in place
  • In Japan, the standard length undercarriage is available, allowing for even smaller and compact machines, as well as the previously available long undercarriage
  • An optional blade is available from the factory, making cleaning jobs easier while acting as a stabilizer to improve lifting capability

Features:

  • Reach or Variable Angle boom
  • A variety of hydraulic tool controls
  • Choice of couplers and buckets
  • Cat C4.4 engine reduces fuel consumption up to 25% compared to the 325F
  • The aftertreatment system requires no maintenance or downtime
  • The new Cat model features three selectable power modes to match the excavator to the application for increased fuel efficiency. The excavator has a standard high-ambient operating temperature capability of 122 degrees Fahrenheit (50 degrees Celsius) and standard cold start capability of 0 degrees F (-18 degrees C).
  • Programmable joystick and high-resolution touchscreen monitor
  • Keyless push-button start
  • 10% improved swing torque
  • Optional Smartboom™ allows the boom to travel up and down freely without using pump flow
  • Cat Advansys™ bucket tips can be changed quickly with a simple lug wrench instead of a hammer or special tool
  • Auxiliary hydraulic options for using a wide range of Cat attachments
  • Standard Cat technologies, standard Grade Assist, Bucket Assist, Swing Assist, Cat Payload and VisionLink®
  • Improved comfort and safety
  • Standard read and sideview cameras, windows and lower front profile
  • Optional 360-degree visibility feature
  • Synchronized maintenance intervals

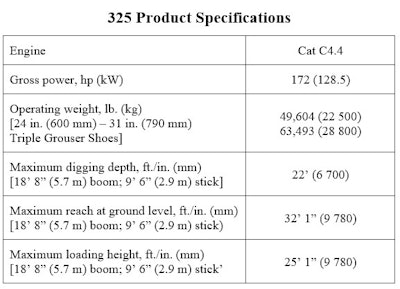

Cat 325 Excavator Specs:

  • Engine: Cat C4.4
  • Gross power (hp): 172
  • Operating weight (lbs.) [24 in. – 31 in. Triple Grouser Shoes]: 49,604  63,493
  • Maximum digging depth (ft./in.) [18’ 8” boom; 9’ 6” stick]: 22’
  • Maximum reach at ground level (ft./in.) [18’ 8” boom; 9’ 6” stick): 32’ 1”
