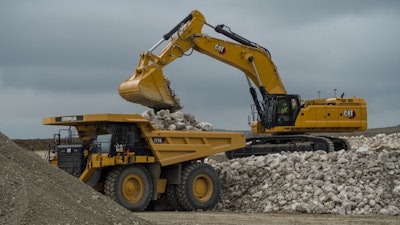

Next Generation Cat 395 Large Excavator

The new Next Gen Cat 395 Excavator offers more production and durability with less maintenance.

Cat 395 Excavator
Cat 395 Excavator
Caterpill 10210679

Caterpillar's The Next Generation Cat 395 excavator offers contractors up to 10% more production, two times more structural durability and up to 20% less maintenance costs than the machine it replaces, the 390F. “We increased swing torque and stick force by 10 percent,” said Brian Abbott, worldwide product manager for Caterpillar large excavators. “These increases enable contractors to use larger buckets for much greater productivity.”

[VIDEO] Cat 395 Excavator 10% More Productive than 390F

Features:

  • A new dedicated hydrostatic swing circuit — a feature typically found only on larger Cat mining shovels like the 6015B
  • Three available modes of operation: Power, Smart, and ECO
  • Cooling system with a new on-demand fan that’s designed to operate only when required, helping to save fuel
  • An available auto reverse function that assists with cleaning debris from the cooling cores
  • Standard technology such as Cat Payload, Cat Grade with 2D, Lift Assist, 2D E-Fence (which prevents the excavator from moving outside operator-defined points), onboard Bluetooth and more standard and optional tech functions
  • Built-in durability
  • Reduced maintenance
  • Extended and synchronized maintenance intervals
  • New Cat air filter with an integrated precleaner and primary and secondary filters
  • New Cat hydraulic return filter with a 3,000-hour service life — a 50% increase over previous filters
  • Fuel system filters which are synchronized for service at 1,000 hours — a 100% increase over the previous filters
  • The fuel system’s water and sediment drains and hydraulic system’s oil level check are positioned close together at ground level
  • Operator-oriented cab with functions such as keyless start, tilt-up console and programmable joystick
  • Large front, rear and side windows along with standard rearview and right-hand-sideview cameras to enhance visibility
  • An optional 360-degree-visibility package that combines images from multiple cameras to enhance the operator’s sight lines in all directions

Cat 395 Excavator Specs:

  • Engine: Cat C18
  • Engine power (ISO 14396): 543 hp
  • Operating weight: 205,471 lb
  • Max. digging depth*: 31’8”
  • Max. reach at ground level*: 48’3”
  • Max. loading height*: 30’4”

*GP 27’7” boom, R 14’5” stick, 6.0 cu.yd. GD bucket
