Ditch Witch Next-generation AT40 All Terrain Directional Drill

Advanced drilling system provides optimal drilling performance, agile steering and enhanced operator control

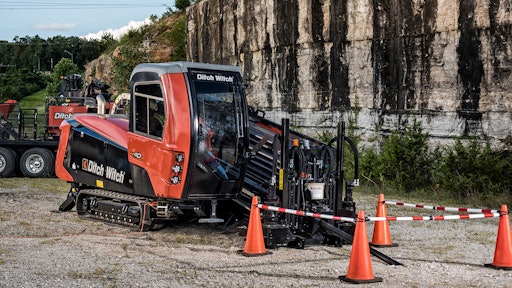

Ditch Witch At40 Secondary
Ditchwitch Logo 10617264

The AT40 All Terrain horizontal directional drill features an advanced, two-pipe All Terrain drilling system that includes multiple patent-pending designs that improve downhole operation. An inner-rod design provides a flush system that improves tool-joint durability and steering in hard rock conditions. To further improve steering and optimize fluid flow, the All Terrain connection reduces the risk of collar damage.

  • 160-gross-hp Cummins Tier 4 diesel engine offers 40,000 lbs. of thrust and pullback
  • Two-speed, rotational drive system produces 5,500 ft.-lbs. of torque
  • 70-gpm, 1,100-psi mud pump increase fluid flow from the pump to the swivel
  • Enhanced RockMaster housing adaptable to two different sizes of drill bit, allowing a 2.875 and 3.5 regular api connection
  • Housing features a double-layer seal with high-capacity bearings for increased downhole life and minimal maintenance, as well as a floating-spindle design for easier replacement
  • Pipe options include All Terrain Flush, Power Pipe HD Fluid Miser II, Power Pipe HD Unlined and Forged HIWS1 pipes
