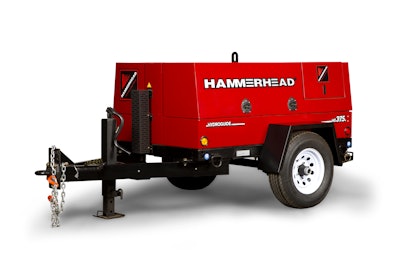

HydroGuide HG375 Winch

Delivers a pull of up to 3.75 tons for slitting plastic gas pipes from 1/2 to 2 in. in diameter

HammerHead HydroGuide HG3755776 Masked 54cbc91f76df0
Hht Boxed Logo 596505973e0cc

The HydroGuide HG375 winch has a maximum pressure of 3,450 psi and delivers a pull of up to 3.75 tons, making it suitable for slitting plastic gas pipes from 1/2 to 2 in. in diameter.

  • Also designed for the pull back of duct, conduit or sliplining product
  • Infinitely proportional control can adjust payout and pullback from as little as 3 in. per minute to 195 fpm
  • Manual controls integrated for backup capability
  • Solid dual-capstan design driven by a dual-speed radial piston motor
  • 21.5-hp Kubota liquid-cooled diesel engine
  • Available options include a Precision Digital Job Data Recorder to track each pull, an all-terrain (AT) track-mounted unit for access to difficult areas and an Electrical Strike Identification (ESID) system for worker safety
  • Winch cable offered in a variety of lengths and diameters
  • Downriggers offered in 5- and 10-ft. versions
