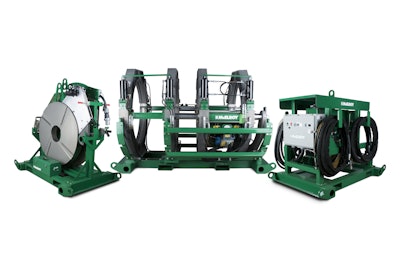

The In-Ditch 48 brings fusion capability to confined work settings using large-diameter pipe. The fusion machine packs more power into a smaller package with 3,000-psi maximum pressure to serve various in-ditch applications for 16-in. to 48-in. OD pipe.
- Top-loading heater and facer provide greater flexibility in tight spaces with minimal site excavation required
- Removable jaws and clamp cylinders enable easier loading
- Four-jaw carriage converts to a three-jaw configuration to fuse short pipe stubs in close quarters
- Provides ease of mobility with multiple lifting points, a carriage spreader bar and skidded carriage
- Power pack and heater/facer caddy each have a single, central lifting point and forklift pockets
- Roll bars protect the carriage and hydraulic components as the machine is eased into the ditch
- Compatible with the DataLogger, which provides joint recording ability and added jobsite accountability
