MD5150 Track Drill

Cat Md5150 Drill Quarry 10859697
Caterpill 10210679

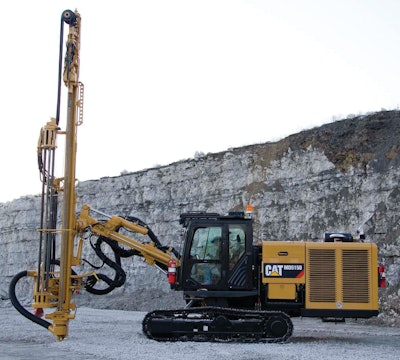

The Cat MD5150 Track Drill can drill holes within 24 in. of the highwall, 50% closer than with a linear rod changer. The unit's smart drill monitoring system tracks changes in rock formation and automatically adjusts impact and feed pressure based on hardness of the rock.

  • Drill holes up to 6 in. in diameter and 102.5 ft. in depth
  • Carousel rod changer holds six rods and accommodates multiple lengths and diameters of drill steel
  • Dual-rod grippers and gate design let road and gate move simultaneously
  • Heavy-duty 8-ft. boom extends to 11 ft.
  • Cat C11 Engine rated at 385 hp at 1,800 rpm; meets Tier 3 and EU Stage IIA emissions standards
  • Anti-jam, anti-plunge and anti-plug capabilities extend drill string life
  • High-capacity dust collection system
  • Automated lube system
  • ROPS/FOPS-certified cab
  • Features: Cat Electronic Technician, Cat Product Link

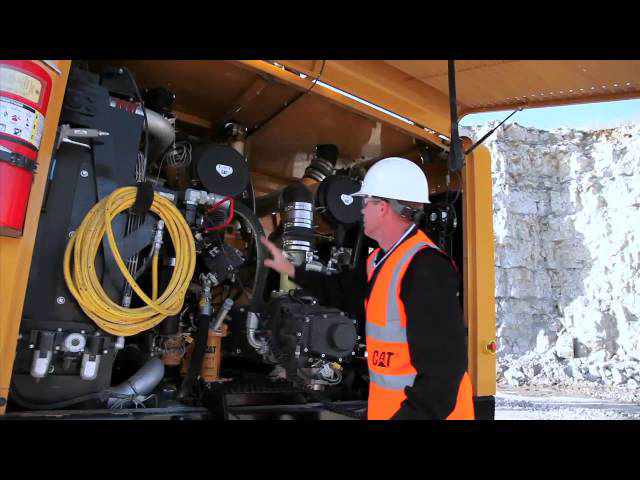

Video: Cat MD5150 Track Drill Walk Around

Brochure: Caterpillar MD5150 Track Drill

Video: Drilling Contractor Prefers Cat Track Drills
