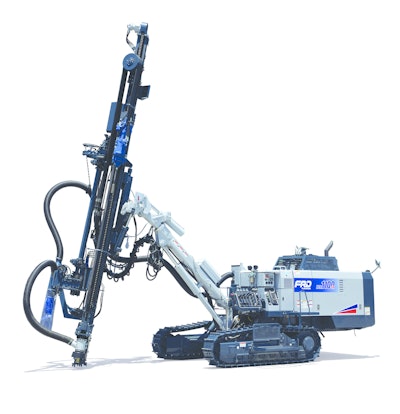

HCR1100-ER Drill

The Furukawa HCR1100-ER is a high performing blast hole drill delivering better penetration with increased impact compared to its predecessor while also offering enhanced fuel efficiency

FRD HCR1100 57e150913147f
Frd Furukawa Company Logo 10940721

The Furukawa HCR1100-ER is a high performing blast hole drill delivering better penetration with increased impact compared to its predecessor while also offering enhanced fuel efficiency.

  • Delivers 55% more impact and 28% more airflow than predecessor
  • Drill larger diameter holes in harder rock
  • Duel dampening system stabilizes bit against rock and automatically adjusts drifter for maximum performance regardless of rock condition
  • Control station positioned to keep operator away from drill rotation and dust
  • Monitoring system gives quick visual of engine temperature, hydraulic oil temperature and fluid levels
  • Low emission, Tier-IV Cummins engine
  • TFSS (total fuel savings system) allows operator to select the optimum engine speed for the application
  • Rod changer allows for install of five drill steels plus one starter rod
  • Winch-ready frame adds application versatility
  • Optional wireless remote allows tramming and drilling from a secondary location
  • Impact rates: up to 3,300 bpm
  • Drifter power: up to 29.5 hp
  • Traction: up to 19,700 lb.-force
  • Shoe width: up to 13 in.
  • Dust collection: up to 918 cfm
