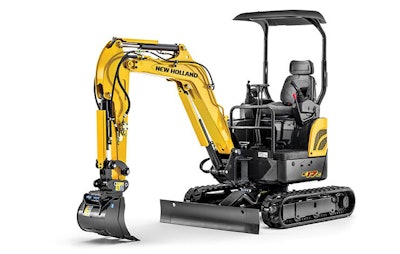

Compact Excavators - C-Series E17C
ZERO TAIL SWING
You can dig, fill and grade right next to buildings, footings and foundations, and in roadways and crowded urban areas thanks to the compact design and zero tail swing of the E17C mini digger (reduced tail swing if you choose the E17C with long arm). You can offset the excavator boom left or right within the operating range to match the situation.
RETRACTING UNDERCARRIAGE
The E17C’s variable undercarriage retracts for entry through tight egresses and then extends for stability while working—just another way you can fit into tight spots.
BIG DIGGING AND GRADING PERFORMANCE
New Holland is the excavator brand to choose. With SAE bucket breakout digging force of 3,490 lbf and dig depth up to 7’3”, the E17C mini ex puts big digging power where you need. You also get top-of-class ground clearance and excellent dozer blade lift height for maneuvering and working in rough conditions.
E17C_highlights_2
EXCELLENT ALL-AROUND STABILITY
The rail and interlocking type tracks used on C Series mini excavators leads to less wear, and provides more contact points for all-around track stability.
E17C_highlights_3
COMFORTABLE OPERATION
Operator productivity has everything to do with a comfortable work environment. The E17C operator area with 2-post canopy provides excellent all-around visibility, ergonomic controls and adjustable seating.
E17C_highlights_4
AUTOMATIC SHIFTING
A hammer circuit and selectable 2-way auxiliary hydraulics are standard equipment for expanded versatility. Add attachments like a thumb kit, compactor, auger or specialty bucket like a swivel bucket and your small excavator now handles even more jobs.
EASY TO TRANSPORT AND SECURE
All C Series mini trackhoes are made to be moved. Thoughtfully placed tie down holes are provided for safe transportation. The ESL (Engine Start Limit) System requires a passcode to start the engine to deter theft. You can also set the time permitted between engine starts.
E17C_highlights_5
SERVICING? NO SWEAT!
Maintenance is made simple with service doors, covers and hoods that open for complete access. You’ll find fluids are easy to check and undercarriages easy to clean. A centralized grease bank for boom swing, swing bearings and swing gear simplifies and speeds up lubrication. Extended service hours also reduce maintenance needs: • Bushings designed for extended lube intervals (250 hrs) • Extended-Life Hydraulic Filters (1000 hrs) • Long-Life Hydraulic Oil (2000 hrs)
Model Kubota D902
Emissions Certification Tier 4 Final Fuel Diesel Cylinders 3 Displacement 898 cc Fuel injection Mechanical Gross horsepower – SAE J1995 16.8 hp (12.5 kW) @2300 RPM Cooling Water-cooled
DRIVETRAIN
Travel speeds - 1st 2.2 kph Travel speeds - 2nd 4.1 kph Maximum traction force 13.9 kN Gradeability 30° (58%) Ground pressure 3.98 psi
Fuel tank 20 L
Hydraulic tank - Refill capacity 13 L Hydraulic tank - Total system 23 L Engine oil w/ filter change 3.7 L Radiator 3.5 L
DIMENSIONS
Arm (standard length) 0.96 m Overall height 2320 mm Overall transport length 3480 mm Track overall length 1590 mm Track overall width 990 mm Track shoe width 230 mm Center to center – idler to sprocket 1230 mm Upper structure ground clearance 440 mm Minimum ground clearance 170 mm Tail swing radius 645 mm Boom swing 70° left/54° right Tail swing overhang 0 mm Operating weight 1775 kg
BLADE SPECS
Backfill blade height 250 mm Backfill blade width 990 mm Backfill blade rise above ground 285 mm Backfill blade dig depth 225 mm
PERFORMANCE SPECS
Maximum dig radius 3900 mm Dig radius at groundline 3800 mm Maximum dig depth 2200 mm Vertical straight wall dig depth 1320 mm
