ET145

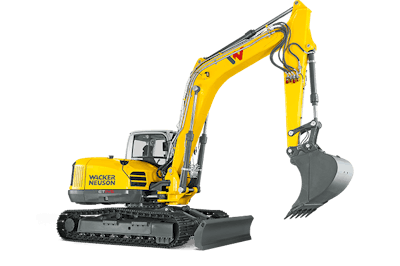

ET145 - The champion of the compact excavators.

Wacker Neuson's ET145 offers massively enhanced performance, without the size of the excavator ever posing a problem. Its performance, stability, and agility are perfectly balanced. Up to 5 additional control circuits, of which 3 are individually adjustable, for multifunctional attachments and extensive application areas.High tonnage with compact dimensions. Tail-swing console and side-mounted boom cylinder for a small front swing radius. Engine at rear and side-mounted hydraulic control block for unimpeded view to the right. The high-performance hydraulics enables spontaneous actuation of the hydraulic functions and maximum working speed.

Spacious and user friendly designed cab with air-conditioning as standard. The best of both worlds. Tthe ET145 combines the productivity of a large model with the advantages of a compact excavator, e.g.: High level of maneuverability Simple transport Different track versions High digging force, such as with much larger excavators

ET145 with swivel console for higher productivity. The swivel console makes the ET145 a real highlight in its weight class. This allows you an increased excavation area to the right and left. And because the machine needs to be moved much less, you save valuable time. The swivel console ... allows you to work along walls and trenches facilitates work at obstacles such as pipes or flowing traffic improves the area of visibility, e.g.during excavation work in trench areas has a swiveling angle range of 70° left and 57° right

Large ergonomic comfort cabin. Sitting position, armrests and joystick can be individually adjusted. Intuitive operation of all excavator functions through the jog dial and display. Automatic air conditioning, reversing camera and exterior mirrors provide additional operator comfort.

The 55,4 kW engine offers excellent excavation power with low consumption. Full power of the engine even at low speed: Power output in kW Engine revs/min grey: conventional engine yellow: engine of ET145

ET145 Technical specifications

Operating data Shipping weight min. 14,917 kg Operating weight 15,551 - 16,335 kg Biting force max. 69 kN Breakout force max. 91 kN Digging depth max. 5,481 mm Dumping height 5,620 - 5,983 mm Digging radius max. 8,727 mm Superstructure slewing speed 11.6 1/min L x W x H 7,720 x 2,490 x 2,786 mm Engine / Motor Engine / Motor manufacturer Perkins Engine / Motor type 904J-E36TA Engine / Motor 4-cylinder turbo diesel engine with water cooling Displacement 3,621 cm³ RPM / speed max., without load 1,850 rpm Engine performance acc. to ISO 55.4 kW Battery 120 Ah Tank capacity 205 l Voltage 12 V Input current 120 A Hydraulic system Duty pump 2 variable pumps, 2 gear wheels Max. flow rate 126 + 126 l/min Max. flow rate 21.5 + 32 l/min Operating pressure for working and traction hydraulics 340 bar Operating pressure Slewing gear 320 bar Hydraulic oil tank 110 l Undercarriage Travel speed max. 5 km/h Chain width 500 mm Ground clearance 480 mm Dozer Blade Width 2,490 mm Height 600 mm Stroke Dozer blade above ground 531 mm Stroke Dozer blade below ground 495 mm Sound level Sound level (LwA) acc. to 2000/14/EC 99 dB(A) Cabin - specified sound pressure level LpA acc. to ISO 6394 75 dB(A)

ET145 Standard components

General Steel track 500 mm Dozer blade Working lights on boom; front and back on the cabin roof; front and side of the chassis Tool kit incl. grease gun and operator manual

Engine

Water-cooled Perkins turbo-diesel engine, type 904J-E36TA, 4-cylinder, 3,621 ccm, net output acording to ISO 55.4 kW (75.3 HP), rated speed 1,850 min/1 (stage V) Idle speed autom. operation Viscous fan Diesel refueling pump

Cabin

Glazed safety cabin: automatic climate control, sliding side windows, front windscreen inwards retractable, windscreen wiperand washing system, full interior lining, swiveling bracket and armrests Cabin complies with the current ROPS, TOPS and FOPS* regulation *FOPS (Level I or II) compliant only when fitted with additional protective guard CD Radio set incl. antenna and speakers 7 multifunctional display for device monitoring and status indication plus programmable pre-selections of flow capacities for additional control circuits Reversing camera Automatic climate control 3 exterior mirrors (left side of the cabine + two on the right side of the chassis)

Hydraulics

Tandem-double variable pump with gear pump (2 x 126 + 21.5 + 32 l/min) with variable power regulation Negative control system, 2 stage flow limiting via toggle switch Hydraulic pilot control via joystick Valve control according to ISO, DIN, SAE, PCSA and EURO Dual travel speed Hydraulically dampened drive pedals Hydraulic oil cooler Pilot contolled load holding valve boom and dipper stick cylinder Summation function boom and dipper stick cylinder Park brake for drive- and turn motor Auxiliary hydraulic connection for 2 direction of motion extra depressurized return line, proportional control Overload valves for auxiliary hydraulics 3rd control circuit with overload valve, proportional control Overload system Advanced (safety valve for lifting arm, dipper stick and dozer blade)
