ET65

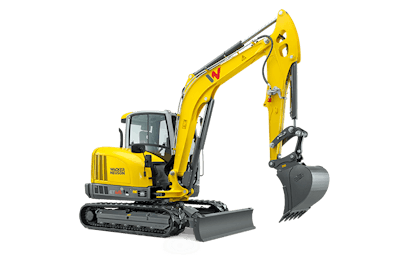

ET65 - Performance and economic efficiency perfectly combined
The ET65 is an excavator like end users want it to be. A highly efficient machine that surprises with its compact design and maneuverability. Thanks to the high digging power and the powerful engine, the strong excavation performance is added bonus points that make the excavator into an all-rounder on the construction site. With the articulated boom, it also has a large reach, digging depth and dumping height.Precise and sensitive operation thanks to the load sensing hydraulic system with LUDV (load-independent flow control)*!

Low consumption due to the economical ECO mode Up to 5 auxiliary control circuits for the most varied attachments Extremely compact and maneuverable Maintenance and service made easy due to the tiltable cabin as well as the diagnostic tool Economical and powerful

Optimal force distribution when excavating and up to 20% more breakaway force: plunge in deeper and excavate more powerfully Less material loss in the bucket due to an expanded angle of rotation of 200 degrees Articulated boom for greater reach, digging depth and dumping height Up to 20% less fuel consumption

Reduced dimensions
Significantly lower height and width than comparable competition models Easily master tight construction sites and low passages Higher level of stability due to the low center of gravity

Easy to transport Cabin, sight and operating comfort Innovative solution for the optimal view - boom to the right next to the cabin Operator comfort: spacious cabin, air cushioned seat and automatic air-conditioning system Innovative front windshield system: two-part windshield can be slid up and moved - rain roof position

LED headlights for optimal illumination Rear camera for more safety when in reverse operation. Jog dial system Technology from the automotive sector For the direct control of central functions Intuitive to operate ET65 Technical specifications

Operating data
Shipping weight min. 5,806 kg Operating weight 6,078 - 6,954 kg Biting force max. 30.8 kN Breakout force max. 50.7 kN Digging depth max. 4,193 mm Dumping height 3,912 - 4,898 mm Digging radius max. 6,877 mm Superstructure slewing speed 9 1/min L x W x H 6,128 x 1,950 x 2,478 mm Engine / Motor Engine / Motor manufacturer Perkins Engine / Motor type 404D-22T Engine / Motor water-cooled 4-cylinder turbo diesel engine Displacement 2,216 cm³ RPM / speed 2,000 rpm Engine performance according to ISO 42 kW Battery 88 Ah Fuel tank capacity 85 l Hydraulic system Duty pump Variable displacement pump and gear pump Flow rate 144 l/min Operating pressure for working and driving hydraulics 240 bar Operating pressure swing gear 215 bar Hydraulic oil tank 92 l Undercarriage Travel speed max. 5.2 km/h Chain width 400 mm Ground clearance 284 mm Dozer Blade Width 1,950 mm Height 423 mm Stroke dozer blade above subgrade 403 mm Stroke dozer blade below subgrade 427 mm Sound level Sound level (LwA) according to 2000/14/EC 97 dB(A) Cabin - specified sound pressure level LpA according to ISO 6394 77 dB(A)

ET65 Standard components
General
Dozer blade Working light mounted to the boom Working lights front and laterally left and right on the chassis Tool kit incl. grease gun and operator manual

Engine
Air filter with integrated cyclone pre-separator Automatic RPM speed control

Cabin
Glazed tiltable safety cabin: cabin heating, sliding side window, windshield inward retractable - rain-roof position, windshield wiper / washing system, fully lined cabin interior, roller sun blind, armrests Cabin meets the current roll-over protective structure, TOPS and FOPS* regulations *FOPS (level I or II) only with additional protective grating Radio installation preparation (cabling, speakers, antenna) Cabling (headlight and rotating beacon) 3 exterior mirrors (cab left, chassis right 2x) Sun blind

Hydraulics
Variable displacement pump and double hydraulic gear pump (144.0 l/min) Hydraulic pilot control via joystick Valve control according to ISO, DIN, SAE, PCSA and EURO Auxiliary hydraulic connections for two directions of movement, mounted on dipper stick 2 travel speeds automatically switched, 2nd gear manually lockable Hydraulically dampened drive pedals and travel lever Hydraulic oil cooler Proportional control aux.hyd / AUX I Overload system Basic
