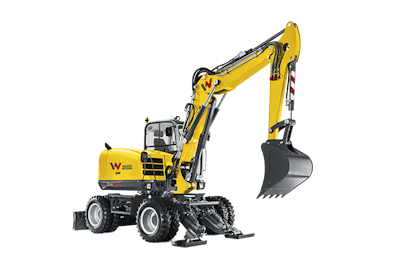

EW100 (triple boom)

EW100 - The future of urban excavation

The new EW100 features a more powerful engine, significantly reduced turning radius, increased digging depth and simplified operation. Wheeled excavators save contractors and municipalities money with unparalleled mobility. With its power, reach and mobility, this excavator is the perfect solution for roadside digging and demolition in urban settings. Operators will also appreciate the new easy to use dial control system. Using this automotive-style feature, operators can easily select and save the auxiliary hydraulic flow settings depending on the attachment, eliminating the need for manual adjustments.Powerful Perkins 854E Tier 4 Final Turbo engine delivers superior horsepower. The 4-cylinder, 3.4 liter engine incorporates cutting edge technology including a common rail fuel injection system, charge-air cooler and diesel particulate filter (DPF).

Articulated triple boom offers increased digging area through an extended dig range, allowing the operator to reach farther, dig closer to the blade and reach under the machine when needed

All wheel steering feature delivers a turning radius of 13-feet making it even easier to maneuver in confined areas.

Operator comfort with air conditioning, automatic climate control and a simplified layout. Driving speeds up to 18.6 mph make getting to and around the job site more efficient.

EW100 Technical specifications

Operating data

Shipping weight min. 20,373 lb Operating weight 21,352 - 24,330 lb Biting force max. 10,566 lbf Breakout force max. 11,308 lbf Digging depth max. 167.21 in Dumping height 233.76 - 244.32 in Dump height max. 244.32 in Digging radius max. 319.42 in Engine / Motor Engine / Motor manufacturer Perkins Engine / Motor type 904J-E36TA Engine / Motor Water-cooled, 4-cylinder turbo diesel engine Displacement 220.88 in³ RPM / speed 1,850 rpm Engine performance according to ISO 74.24 hp Battery 100 CCA Fuel tank capacity 44.9 US gal Hydraulic system Duty pump 1-pump Load Sensing Flow rate 47.6 US gpm Max. flow rate 32.5 + 50.2 US gpm Operating pressure for driving hydraulics 6,381.76 psi Operating pressure for working hydraulics 4,206.16 psi Hydraulic oil tank 31.7 US gal Undercarriage Axles Front axle Oscillating steering axle Axles Rear axle Rigid steering axle Tires Standard 8.25-20 14 PR Twin Tires Turning radius 219.3 in Track width 76.5 in Ground clearance 14.2 in Travel speed 12.4 mph Travel speed Option 18.6 mph Dozer Blade Width 97.1 in Height 19.7 in Stroke - Above ground 19.86 in Stroke - Below ground 5.2 in Sound level Sound level (LwA) 99 dB(A)

EW100 Standard components

Perkins 854E Tier 4 Final 4 cylinder diesel engine featuring common rail fuel injection, a charge-air cooler and diesel particulate filter (DPF) Cab with automatic climate control, heat, air conditioning, multi adjustable spring suspension seat and radio-ready ROPS and TOPS compliant All-Wheel Steering Reversible Steering Hydrostatic all-wheel drive Max travel speed of 18.6 mph Advanced speed control Lockable, articulating front axle Dual rubber tires Rear dozer blade and dual front stabilizers 1-pump load sensing hydraulic system Auxiliary hydraulics circuit with flat face coupler and non-pressurized return to tank line 2nd Auxiliary circuit with flat face couplers Proportionally controlled auxiliary hydraulics Dial control system with the ability to save auxiliary flow settings Pilot joystick controls ISO/SAE control pattern changeover Boom mounted work light Adjustable driver's seat and seat belt Sunshade Operator and spare parts manuals Tool kit including grease gun Motion alarm Front horn Indicators: Battery, engine oil pressure, coolant temp, fuel gauge EquipCare telematics hardware (requires subscription)
