EZ17

EZ17 - Perfect balance of accessibility, speed and productivity

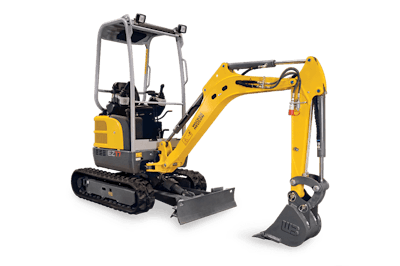

The EZ17 compact excavator is the best performing zero tail model in its class. The EZ17 is powered by a Tier 4 Final engine that offers excellent power, fuel economy and quiet operation. The EZ17 is the smallest zero tail excavator from Wacker Neuson combining a compact design, expandable undercarriage and 2- speed drive. The EZ17 provides maximum maneuverability and accessibility while still delivering an excellent digging depth and powerful bucket breakout force. The expandable undercarriage is adjustable to travel through narrow passages and low ground pressure protects existing landscaping.Load sending system (LUDV) offers smoother operation and improved performance when using multiple functions. A telescopic undercarriage can be extended from 39 to 51 for greater lifting power and stability.

2-speed drive offers travel speeds up to 2.9 mph. Pattern control changeover allows for ISO and SAE operation. Positioning of boom cylinder on top of the boom offers great boom and hose protection.

Operating data
Shipping weight min. 3,516 lb Operating weight 3,801 - 4,299 lb Biting force max. 2,046 lbf Breakout force max. 4,204 lbf Digging depth max. 97.9 in Dumping height 95.9 - 100.47 in Digging radius max. 153.5 in L x W x H 141.1 x 39 x 93 in Fuel tank capacity 5.8 US gal

Engine / Motor
Engine / Motor manufacturer Yanmar Engine / Motor type 3TNV80F Engine / Motor Water-cooled 3-cylinder diesel engine Displacement 77.2 in³ RPM / speed 2,200 rpm Engine performance output to ISO 17.2 hp

Battery
Battery 30 CCA Hydraulic system Flow rate 10.5 US gpm Operating pressure for working and traction hydraulics 3,481 psi Operating pressure Slewing gear 2,176 psi Hydraulic oil tank 5.6 US gal

Undercarriage
Travel speed max. 3 mph Chain width 9.1 in Ground clearance 6.3 in Dozer Blade Width 51.2 in Height 9.1 in

Sound level
Sound level (LwA) acc. to 2000/14/EC 93 dB(A) Cabin - specified sound pressure level LpA acc. to ISO 6394 79 dB

EZ17 Standard components
Yanmar 4 stroke, 3 cylinder Tier 4 Final diesel engine 2-speed drive ROPS Certified Rubber tracks Telescopic undercarriage Expandable dozer blade 1-pump load sensing hydraulic system Auxiliary hydraulics with flat face coupler and non-pressurized return to tank line Hydraulic oil cooler Pilot joystick controls ISO/SAE control pattern changeover located in cab and operator's station Boom mounted work light Adjustable driver's seat and seat belt Operator and spare parts manuals Tool kit including grease gun Motion alarm Horn Indicators: Battery, engine oil pressure, coolant temp, fuel gauge EZ17 Options 3 inch seat belt

Rotating beacon
Long dipper stick with counterweight Counterweight FOPS Level 1 Protection
