EZ26

EZ26

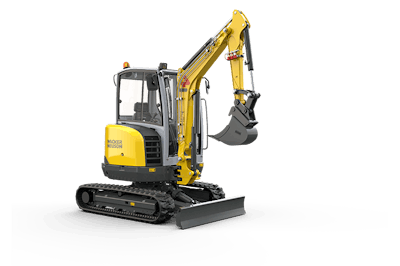

The compact excavator EZ26 guarantees modern design, flexibility and ease of use. Transportation by car trailer to the next construction site? No problem - the low weight allows transport including attachment tool by means of 3.5t trailer. An innovative windshield mechanism for easy ventilation provides working comfort and facilitates communication between driver and colleagues. Control lever carrier, the wide cabin entry and the arrangement of control and display elements of the EZ26 are ergonomically perfectly adapted to the needs of your workplace.The re-designed cabin of the EZ26 is ergonomical and spacious. Large, double-sided sliding windscreen.

Magnetic rotating light (LED) which can be quickly attached and released at any time. The LED light is characterized by high luminosity and low power consumption. Zero tail swing for working in tight and confined spaces.

Optional Vertical Digging System (VDS) and EASY LOCK.
EZ26 Technical specifications

Operating data
Shipping weight 2,469 - 3,161 kg Operating weight 2,571 - 3,262 kg Biting force max. 15.3 kN Breakout force max. 22.5 kN Digging depth max. 2,744 mm Dumping height 2,840 - 3,087 mm Digging radius max. 4,806 mm Superstructure slewing speed 10 1/min L x W x H 4,266 x 1,570 x 2,414 mm Tank capacity 36 l

Engine / Motor
Engine / Motor manufacturer Yanmar Engine / Motor type 3TNV76 Engine / Motor water-cooled 3-cylinder diesel engine

Displacement 1,116 cm³
RPM / speed 2,500 rpm Engine performance output to ISO 15.8 kW

Battery
Battery 44 Ah

Hydraulic system
Duty pump double variable- & two-gear pump Max. flow rate 30.5 + 30.5 l/min Max. flow rate 20.2 + 7.2 l/min Operating pressure for working and traction hydraulics 225 bar Operating pressure slewing gear 206 bar Hydraulic oil tank 26.5 l Undercarriage Travel speed max. 3.8 km/h Chain width 300 mm Ground clearance 277 mm Dozer Blade Width 1,570 mm Height 290 mm Stroke max. above ground 380 mm Stroke max. below ground 419 mm Sound level Sound level (LwA) acc. to 2000/14/EC 93 dB(A) Cabin - specified sound pressure level LpA acc. to ISO 6394 79 dB(A) EZ26 Standard components

General
Rubber track 300 mm Dozer blade Working light mounted to the boom Tool kit incl. grease gun and operator manual Lockable document box (A4 format, waterproof)

Engine
Water-cooled YANMAR diesel engine, type 3TNV76, 3-cylinder / 1,116 ccm, net output according to ISO 15.8 kW (21.5 hp), rated speed 2,500 min-1 (level 5)

Canopy
Adjustable comfort seat with imitation leather cover and safety belt Canopy (and cabin) complies with the current ROPS, TOPS and FOPS* regulation *FOPS (level I and II) compliant only when fitted with additional protective guard

Hydraulics
Double variable capacity pump + 2 gear pumps (2 x 30.8 + 21.4 + 7.2 l/min) Summation regulation Hydraulic pilot control via joystick Valve control according to ISO, DIN, SAE, PCSA and EURO Auxiliary hydraulic connections for two directions of motion, mounted on dipperstick Hydraulically dampened drive pedals Hydraulic oil cooler Parking brake for swivel unit
