EZ36

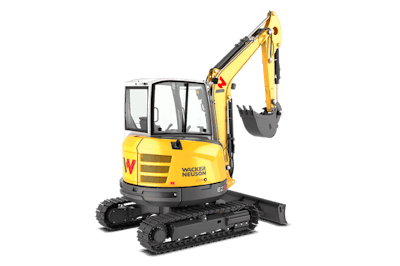

EZ36 - Trimmed for productivity
The EZ36 is full of detailed solutions that increase productivity and make working for the operator even more enjoyable and efficient. The intuitive operating concept, combined with precise control, shortens working cycles and saves time and money. In addition, many options can be installed ex factory.

Performance meets maximum efficiency User-friendly operating concept and comfort cabin VDS - Working in the slope - without coming to falter Zero Tail - when it gets tight

Unrestricted maintenance and service accessPerformance meets maximum efficiency Optimized engine-pump management for up to 15% faster work cycles. Hydraulically piloted accelerator pedals for a precise control of the driving function with the feet leaving hands free.

User-friendly operating concept Easy and comprehensive control of the excavator thanks to ergonomically designed joystick, jog dial, key pad and 3.5 inch display. The well-known Jog-dial system from the automotive sector allows an intuitive selection of the appropriate operating mode via turn-push button:

ECO mode - the standard mode for efficient and fuel-saving work.
Power mode - maximum pump performance for fast and powerful work.
Comfort cabin
High comfort and fatigue-free working thanks to large cabin with plenty of head- and legroom. With seat and armrest adjustment, numerous storage compartments, a mobile phone docking station and USB port, the cabin can be individually adjusted to the preferences of the driver. Sliding side windows for optimum all-round visibility and air circulation in the cabin.

Windscreen mechanism with many functions
The windscreens of the EZ36 can be adapted to the conditions on the construction site:

Closed windscreen: ideal protection no matter what the weather.
Open windscreen: easy ventilation of the cabin and unrestricted communication with colleagues. Both windscreens can be stored under the cabin roof - so they do not get lost.

Individually configurable
The customer has further options available ex factory, which are installed individually as required.

Up to 5 additional control circuits EquipCare Additional rear weight Rubber or steel tracks

Swiveling dozer blade
The swiveling dozer blade with floating position consistently exerts force to the cutting edge. So the position of the shield needs to be adjusted less often, which makes the workflow more efficient and saves time. (Not combinable with the option VDS).

Innovative system for all grapple work
Ideal for all grappling work is the optional hydraulic thumb, a hydraulic clamp on the bucket.

Working in the slope - without coming to falter
The stepless adjustable inclination VDS compensates slopes of up to 27% and makes vertical digging on slopes possible and easier, which not only provides better ergonomic conditions for the driver, but also saves time and excavation.

Zero Tail - when it gets tight
The EZ36 has no rear overhang and can swing conveniently - even in the smallest of spaces. In addition, the EZ36 has compact dimensions.

Transport made easy
Easy and safe transport thanks to 6 large lashing eyes on the chassis frame and 2 on the dozer blade.

Stability
The external rollers provide increased smoothness of the chains and additional latteral stability.

Unrestricted maintenance and service access:
Tipping and dismountable cabin facilitates inspections, maintenance and repair work. Service-related components can be accessed quick and easy due to the removable covers and the large side hood. Lower operating costs due to two low-consumption engine variants that do not require exhaust aftertreatment.

Game Free boom system - even after many operations
Heavy-duty bolts and bearings are equipped with bushings that can be exchanged easily. The boom system thus works trouble-free even in the long term.

Intelligent design
Long service life thanks to robust and proven design. Robust frame with sloping chassis reduce dirt accumulation and facilitate the cleaning of the machine. HomeProductsExcavatorsTracked Zero Tail ExcavatorsEZ36

Main Content
EZ36 Technical specifications

Operating data
Shipping weight min. 3,530 kg Operating weight 3,720 - 4,636 kg Biting force max. 21.1 kN Breakout force max. 35 kN Digging depth max. (long dipperstick) 3,497 mm Dumping height 3,336 - 3,336 mm Digging radius max. (long dipperstick) 5,743 mm Superstructure slewing speed 9.5 1/min L x W x H 5,503 x 1,750 x 2,491 mm Fuel tank capacity 44 l Engine / Motor Engine / Motor manufacturer Yanmar Diesel engine Engine / Motor type 3TNV88F Engine / Motor water-cooled 3-cylinder suction engine Emission standards stage 5 Rated performance 18.2 kW Displacement 1,642 cm³ RPM / speed 2,400 rpm Engine performance POWER Mode 18.2 kW Battery Battery 71 Ah Hydraulic system Duty pump 2 axial piston pumps / 2 gear pumps Max. flow rate 42.5 + 42.5 l/min Max. flow rate 23.8 + 11.3 l/min Operating pressure for working and driving hydraulics 240 bar Operating pressure Drehwerk 195 bar

Undercarriage
Travel speed max. 4.7 km/h Chain width 300 mm Ground clearance 251 mm Dozer Blade Width 1,750 mm Height 357 mm Stroke dozer blade above ground 393 mm Stroke dozer blade below ground 505 mm

Main Content
EZ36 Standard components General Rubber track: 300 mm Dozer blade Working light on boom Tool kit incl. grease gun and operator manual Lockable document box (A4 format, waterproof) Canopy Adjustable comfort seat with imitation leather cover and safety belt Canopy (and cabin) complies with the current ROPS, TOPS and FOPS * regulations Hydraulics Double adjustment + double gear pump (2 x 42.5; 26.3; 11.3 l/min) Summation regulation Hydraulic pilot control with joystick Valve control according to ISO, DIN, SAE, PCSA and EURO Auxiliary hydraulic connections for two directions of motion, mounted on dipperstick Auto 2-speed gearbox, 2 driving speeds automatically switched, 2nd gear manually lockable Hydraulically damped accelerator pedals and control levers Hydraulic oil cooler Enlarged, pressure-free return line (for various attachment tools) Proportional control for AUX I; adjustable flow rate by potentiometer
