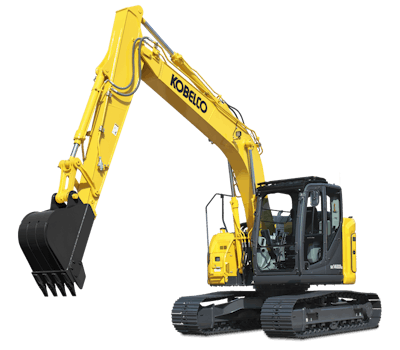

SK140SRLC-7 Offset Boom
The KOBELCO SK140SRLC-7 Offset Boom is packed with impressive power for a mid-sized machine. Its compact design, short rear swing agility and long digging reach capabilities provide a broad working range and easy maneuverability.
KOBELCO's exclusive iNDr noise reduction system allows the SK140SRLC-7 Offset Boom to minimize dust and suppress noise. This machine supplies the perfect balance of fuel economy and jobsite productivity with a variety of operating modes. Plus, premier operator comforts mean it's easier to stay focused on the task at hand.
Overall Height (to top of boom) 9' 5 (2,860 mm) Overall Width 8' 6 (2,590 mm) Ground Clearance of Rear End 2' 10 (870 mm) Ground Clearance 16.3 (415 mm) Tail Swing Radius 4' 11 (1,490 mm) Distance From Center of Swing To Rear End 4' 11 (1,490 mm) Tumbler Distance 10' (3,040 mm) Track Gauge 6' 6 (1,990 mm) Shoe Width 23.6 (600 mm) Overall Width of Upperstructure 8' 2 (2,480 mm)
PERFORMANCE
Travel Speed 3.5 mph (5.6 kph) / 2.1 mph (3.4 kph) Drawbar Pulling Force 31,700 lbf (141 kN)
WEIGHT
Operating Weight 33,700 lbs (15,300 kg)
ENGINE
Model Isuzu 4JJ1XDRAC-01 Power Output 115 hp (86 kW) 105 hp (78.6 kW) Max. Torque 277 lbf (357 Nm) Displacement 183 in³ (2.999 ltr) Fuel Tank 49.1 gallons (US) (186 ltr)
HYDRAULIC SYSTEM
Pump 2 Piston Dozer Blade Blade Height: 20 (515 mm) Blade Width: 8' 6 (2,590 mm) Max. Raise Height: 23 (575 mm) Dig Depth: 23 (575 mm) Max. Digging Reach 25' 9 (7,860 mm) Max. Digging Reach At Ground Level 25' 3 (7,690 mm) Max. Digging Depth 17' 2 (5,220 mm) Max. Digging Height 27' 1 (8,250 mm) Max. Dumping Clearance 19' 6 (5,930 mm) Max. Vertical Wall Digging Depth 10' 7 (3,230 mm) Min. Swing Radius 6' 2 (1,870 mm) Digging Depth For 8 Feet Flat Bottom 16' (4,870 mm)
Bucket Digging Force 20,900 lbf (92.9 kN) Arm Crowding Force 12,900 lbf (57.3 kN)
