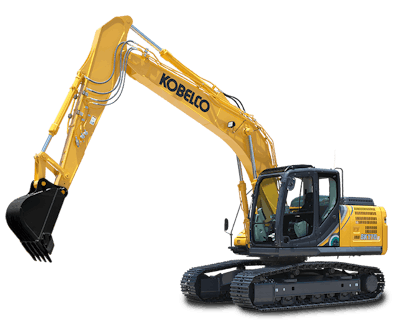

SK170LC-10
Engine Power - 127 hp (95 kW)
Operating Weight - 38,800 lbs (17,600 kg)
The SK170LC-10 boasts a full 127 hp and a whopping 22,700 lbf of digging force. It's nimble enough - and quiet enough - to work in spaces most conventional machines can't. NEXT-3E technology lets you dial in the perfect balance of performance and fuel economy, turning fast cycle times into profit. Plus, premier operator comforts means its actually a pleasure to operate.
Overall Length 28' 6 (8,710 mm) Overall Height (to top of boom) 10' 1 (3,080 mm) Overall Width 9' 1 (2,780 mm) Ground Clearance of Rear End 3' 4 (1,050 mm) Ground Clearance 17 (460 mm) Tail Swing Radius 8' 4 (2,550 mm) Distance From Center of Swing To Rear End 8' 4 (2,550 mm) Tumbler Distance 10' 8 (3,280 mm) Track Gauge 6' 5 (1,990 mm) Shoe Width 2' (600 mm) Overall Width of Upperstructure 8' 5 (2,590 mm)
PERFORMANCE
Travel Speed 2.9 mph (4.7 kph) / 1.7 mph (2.8 kph) Drawbar Pulling Force 51,900 lbf (231 kN)
WEIGHT
Operating Weight 38,800 lbs (17,600 kg)
ENGINE
Model Hino J05E UM-KSST Power Output 134 hp (100 kW) 127 hp (95 kW) Max. Torque 355 lbf (482 Nm) Displacement 312.6 in³ (5.123 ltr) Fuel Tank 74 gallons (US) (280 ltr)
HYDRAULIC SYSTEM
Pump 2 Variable axial piston + Gear Max. Digging Reach 31' 1 (9,490 mm) Max. Digging Reach At Ground Level 30' 6 (9,320 mm) Max. Digging Depth 21' 3 (6,490 mm) Max. Digging Height 32' 1 (9,770 mm) Max. Dumping Clearance 23' 3 (7,100 mm) Max. Vertical Wall Digging Depth 19' 6 (5,950 mm) Min. Swing Radius 9' (2,740 mm) Digging Depth For 8 Feet Flat Bottom 20' 7 (6,310 mm) Bucket Digging Force 28,300 lbf (126 kN) Arm Crowding Force 17,700 lbf (78.8 kN)
