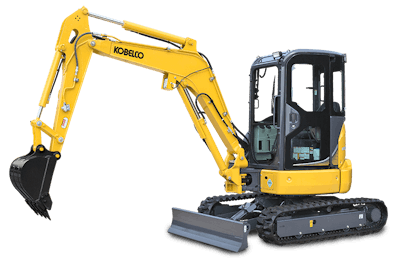

SK35SR-6E
Engine Power - 23.1 hp (17.2 kW)
Operating Weight - 8,555 lbs (3,880 kg)
As our smallest excavator equipped with exclusive KOBELCO iNDr cooling technology, the SK35SR-6E provides more value-added options as standard features than you'd expect in a mini. It boasts ultra-quiet operation and exceptional fuel efficiency - up to 25% when Energy Conservation Mode (S-mode) is enabled. The spacious enclosed cab provides an unobstructed view of the work site while still providing minimal tail overhang for work in tight spaces.
Overall Height (to top of boom) 8' 3 (2,510 mm) Overall Width 5' 7 (1,700 mm) Ground Clearance of Rear End 1' 11 (570 mm) Tail Swing Radius 2' 10 (850 mm) Distance From Center of Swing To Rear End 2' 10 (850 mm) Tumbler Distance 5' 7 (1,700 mm) Track Gauge 4' 7 (1,400 mm) Shoe Width 1' (300 mm) Overall Width of Upperstructure 5' (1,530 mm)
PERFORMANCE
Travel Speed 2.7 mph (4.4 kph) / 1.6 mph (2.5 kph) Drawbar Pulling Force 8,565 lbf (38.1 kN)
WEIGHT
Operating Weight 8,555 lbs (3,880 kg)
ENGINE
Model Yanmar 3 TNV 88F - E Power Output 24.4 hp (18.2 kW) 23.1 hp (17.2 kW) Max. Torque 60 lbf (81.7 Nm) Displacement 100.6 in³ (1.642 ltr) Fuel Tank 11 gallons (US) (42 ltr)
Max. Digging Reach 18' 6 (5,640 mm) Max. Digging Depth 11' (3,350 mm) Max. Dumping Clearance 10' (3,048 mm)
