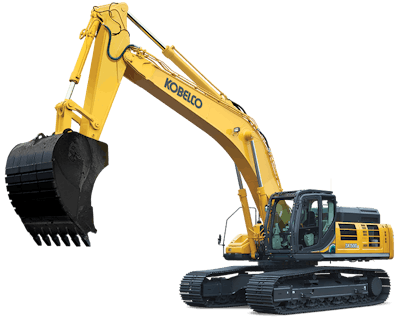

SK500LC-10 ME
Engine Power - 369 hp (271 kW)
Operating Weight - 118,000 lbs (53,500 kg)
KOBELCO Mass Excavators have an upgraded boom and arm capable of handling extra-large buckets and fast cycle times. The SK500LC-10 ME has a heaped bucket capacity of 4.45 cubic yards. And you don't have to sacrifice any of the bells and whistles. You'll find all of our standard features, including independent travel, no time limit power boost, swing flashers and premier operator comforts.
Overall Length 39' (11,910 mm) Overall Height (to top of boom) 13' 11 (4,240 mm) Overall Width 11' 11 (3,650 mm) Ground Clearance of Rear End 4' 5 (1,340 mm) Ground Clearance 20.1 (510 mm) Tail Swing Radius 12' 6 (3,800 mm) Distance From Center of Swing To Rear End 12' 6 (3,800 mm) Tumbler Distance 14' 5 (4,400 mm) Track Gauge 9' (2,750 mm) Shoe Width 3' (900 mm) Overall Width of Upperstructure 10' 2 (3,110 mm)
PERFORMANCE
Travel Speed 3.4 mph (5.4 kph) / 2.1 mph (3.4 kph) Drawbar Pulling Force 93,300 lbf (415 kN)
WEIGHT
Operating Weight 118,000 lbs (53,500 kg)
ENGINE
Model Hino P11C-VN Power Output 369 hp (271 kW) Max. Torque 1084 lbf (1470 Nm) Displacement 642 in³ (10.52 ltr) Fuel Tank 169.1 gallons (US) (638 ltr)
HYDRAULIC SYSTEM
Pump 2 Variable axial piston + Gear Max. Digging Reach 35' 8 (10,880 mm) Max. Digging Reach At Ground Level 34' 11 (10,630 mm) Max. Digging Depth 21' 3 (6,480 mm) Max. Digging Height 34' 5 (10,490 mm) Max. Dumping Clearance 22' 8 (6,910 mm) Max. Vertical Wall Digging Depth 13' 1 (4,000 mm) Min. Swing Radius 15' 7 (4,750 mm) Digging Depth For 8 Feet Flat Bottom 20' 8 (6,310 mm) Bucket Digging Force 68,600 lbf (305 kN) Arm Crowding Force 60,700 lbf (270 kN)
