The new large milling machine W 210 XF: With an engine power output of 580 kW (778 HP) and a range of milling widths between 6 ft. 7 in. (2.0 m) and 8 ft. 2 in. (2.5 m), this machine is ideally equipped for a wide range of applications and high daily productivity.
Its DUAL SHIFT powershift transmission enables the realization of a wide range of milling drum speeds. The lower range of milling drum speeds enables significant reductions of fuel consumption, pick wear, and noise emissions. Thanks to its broad spectrum of applications and grinding profiles, Wirtgen Precision Grinding (WPG) delivers highest surface quality on a variety of different road pavements.

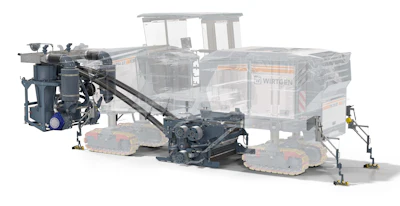

The key component of Precision Grinding is a newly developed grinding shaft which grinds the surface with more than 300 diamond grinding discs on the rapidly rotating WPG shaft to achieve a particularly high degree of evenness.
The theoretical grinding depth is 0 - 50 mm and the grinding width is 1,875 mm. A wide range of profiles can be created with combinations from the large selection of grinding discs available – for instance, to improve water run-off from road surfaces. A powerful suction extraction system, the slurry evacuator, completely removes the grinding slurry from the grinding aggregate and leaves a completely cleaned surface.
The mature Level Pro Active grade and slope control system ensures precisely ground surfaces and significantly improves evenness, cross slope, and roughness characteristics. Wirtgen Precision Grinding can be used for the grinding of asphalt, cobblestone, and concrete pavements. Aside from the improved evenness and grip characteristics, the original properties of the surface materials remain unchanged.
The W 210 XF is engineered to handle demanding cold milling applications with a focus on efficiency, sustainability and precise performance.
