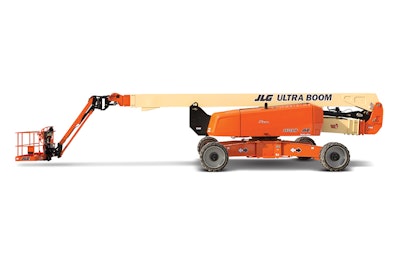

JLG's 1500AJP articulating boom lift is currently the world's tallest articulating boom lift allowing for an additional 60% more of a working envelope compared to the next closest articulated boom.
- Standard 7.9-ft. jib raises and lowers 135 degrees and pivots horizontally 125 degrees
- Boom's QuikStik feature enables lift to move from ground to max platform height in three minutes
- LCD panel communicates position of boom within the work envelope and status of operating systems
- 40% gradeability
- 360-degree continuous turntable rotation
- Four-wheel drive
- Hydraulically powered pivoting axles expand quickly for fast setup
- Stroke cylinder dampening
- Swing-out engine try
- Platform capacity: 1,000 lb. and 600 lb. unrestricted
- Maximum reach: 75 ft.
- Lift height: 150 ft.
- Working envelope of more than 2.6 million cubic feet
