Link-Belt 120|RT 120-ton Rough-terrain Crane

120|RT delivers outstanding reach with a 6-section 38.3- to 164.1-ft. pin and latch formed boom

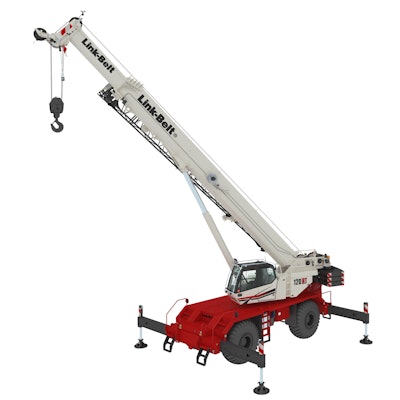

Linkbelt 120 Rt Work Frame 0013
Link Belt Red Black With Swoop

Bauma 2019 will be the official launching of Link-Belt's 120|RT 120-ton rough terrain crane. The 120|RT delivers outstanding reach with a six-section 38.3- to 164.1-ft. pin and latch formed boom, built to Link-Belt’s specific boom profile and tolerances.

  • Available two-piece (35 to 58 ft.) on-board offsettable fly manually offsets at 0, 15, 30 and 45 degrees
  • Two 16-ft. lattice insert extensions provide maximum tip height of 261.7 ft.
  • Six-speed transmission powered by dual compliant Cummins Stage V/Tier IV QSB 6.7L 232 hp; also available is a Cummins Tier III QSB 6.7L 240-hp  diesel engine
  • Four 29.5x25 tires mounted on axles affixed to the carrier via greaseless 4-link suspension
  • Centralized electrical locations
  • Remote mounted filters
  • Easy-access fluid checks make routine service a breeze.
  • 24-volt electrical system with Controller Area Network (CAN bus) system
  • Six points of access to carrier deck are maintained with ergonomic ladders and, regardless of slew angle, easy egress to the flat deck from the cab
  • Durable textured paint and slip-resistant paint on carrier deck
  • V-CALC (Variable Confined Area Lifting Capacities) system features 81 different outrigger configurations with real time 360-degree charts
  • Link-Belt Pulse 2.0 provides live view of working area with color-coded quadrants; if the chart exceeds capacity at a given slew angle, swing arrest will initiate five degrees prior allowing the crane to come to a smooth stop
  • New winch design with ultra-wide drums for increased line pull at higher working layers
  • Maximum winch line pull of 23,632 lb.
  • Three slabs of hydraulically removable upper counterweight totaling 28,800 lb. standard
  • Cab specs include: 20-degree tilt; ergonomic seat with electronic joystick/single axis controllers; automotive-type, high capacity HVAC system ; increased storage and interior lighting; time delayed wipers; USB and 12-volt power supply connections; van-style pop out door
  • Lights include: dual amber strobe lights; LED working lights; outrigger lights
  • Work platforms on the upper with guardrails
  • Operator programmable function kick outs
  • Overall height: 12 ft. 10 in.
