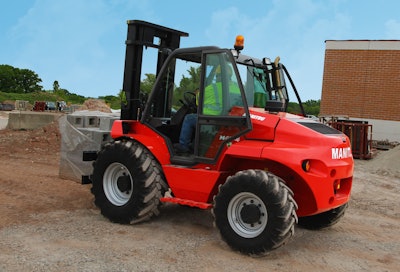

The Tier 4-certified M 40 rough-terrain vertical masted forklift has a maximum lift height of 19 ft. 6 in. and a maximum loading capacity of 8,179 lbs. It is available in two-wheel and four-wheel drive with increased visibility and ergonomics, improved fuel economy, mast customization options and a sleek, curved body style.
- 74-hp Perkins Tier 4-certified diesel engine delivers up to 235 ft.-lbs. of torque and enables a reduction in fuel consumption by 13%
- Achieves up to 21,730 lbs. of tractive effort
- Rugged, robust design and high ground clearance allow easy travel easily over rough and loose terrain
- Standard load accumulator prevents shock and vibration from affecting the load for safe transport over bumpy, uneven surfaces
- Oscillating rear axle and wide stance of the front tires ensure stability in adverse conditions
- Overall compact dimensions and short turning radius make it possible to navigate in areas where space is confined
- Torque converter or optional hydrostatic transmission
- Mast tilts up to 15° forward and backward
- Multiple mast configurations include a side-shift mast, side-shift carriage options and two-stage full visibility or three-stage free lift mast design in various mast sizes
