Telescopic Handlers April 2010

Meet all of your lifting, loading and carrying tasks with this selection of telescopic handlers.

1270746032444 10293249

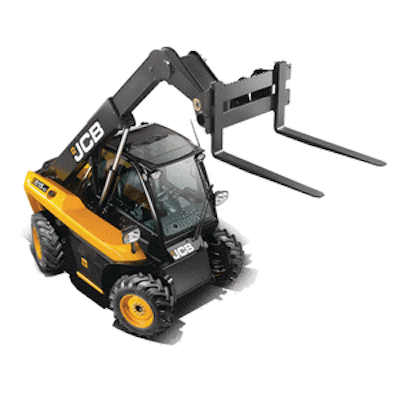

515-40 Compact Telescopic Handler



The 7,672-lb. 515-40 has an overall height of under 6 ft., making it well suited for use in confined areas.

  • Lifts 3,300 lbs. to a maximum lift height of 13 ft. 2 in.
  • 8 ft. 6 in. of forward reach and 13 ft. 2 in. of loading height
  • Full-size cab with easy accessibility
  • Equipped with four-wheel steering, four-wheel drive, a hydrostatic transmission and a 50-hp engine
  • Standard universal skid-steer quick attach



JCB Americas

G10-43A Telehandler



The G10-43A model telehandler includes standard outriggers, a maximum capacity of 10,000 lbs. and a capacity of 7,000 lbs. at the maximum reach height of 43 ft.

  • Spacious, enhanced-visibility cab and comfortable operator environment
  • Feature pilot-operated joystick controls, a wrap-around dashboard and easy-to-read gauges
  • Offers fast boom speeds and a tight turning radius
  • Full range of common JLG family attachments



JLG Industries, Inc.

Lull 944E-42



The Lull Model 944E-42 features 80 in. of horizontal boom travel for quick and accurate load placement.

  • 9,000-lb. maximum lift capacity with a maximum lift height of 42 ft.
  • Steel frame design with twin-rail box construction
  • 99-hp Cummins B4.5T turbo diesel engine and four-speed forward/three-speed reverse powershift transmission
  • All-wheel round, two-wheel front and crab steering
  • Full-time planetary four wheel drive



JLG Industries, Inc.

MT Series Telehandlers



The MT Series offers a welded box-section design, four-wheel drive, three steering modes, frame leveling and quick-attach mounting system.

  • MT 6034 has a 34-ft. 3-in. lift height and a rated operating capacity of 6,000 lbs.
  • MT 6642 has a 42-ft. lift height and a 6,600-lb. rated capacity
  • MT 8044 lifts 7,000 lb. to the full lift height of 44 ft. and 8,000 lbs. to 37 ft.
  • 99- or 115-hp John Deere diesel engine and three-speed powershift transmission



Manitou North America Inc.

RS10-55 and RS12-42



The RS10-55 has a 10,000-lb. rated lift capacity and a 55-ft. maximum lift height, while the RS12-42 has a 12,000-lb. rated lift capacity and a 42-ft. maximum lift height.

  • Feature a 115-hp turbocharged diesel engine, four-speed powershift transmission, three steering modes and quick-attach work tool mounting system
  • Welded box-section boom design for added strength
  • Rear axle stabilizer system
  • Spacious operator's environment with pilot-assisted controls



Gehl Company

SkyTrak Telehandlers



Five models offer lifting capacities from 6,000 to 10,000 lbs., lifting heights to 53 ft. 2 in. and horizontal reach to 39 ft. with outriggers down.

  • ZF drivetrain includes axles with heavy-duty inboard wet brakes, limited-slip front differential and a fully modulated powershift transmission
  • Stabil-TRAK rear axle stability system
  • Auxiliary hydraulics for attachment versatility



JLG Industries, Inc.

TH19-55 Telehandler



The TH19-55 has an operating weight of 9,800 lbs. and a maximum lift capacity of 5,500 lbs.

  • Maximum lifting height of 19 ft.
  • 5-ft. 6-in. turning radius
  • Provides easy around the jobsite



Terex ASV

TH406 and TH407 Telehandlers



The TH406 and TH407 feature two-section booms with load capacities of 8,150 lbs. and lift heights of 20 and 24 ft.

  • 100- or 125-hp C4.4 turbocharged, aftercooled, Tier III diesel engines
  • Powertrain incorporates a limited-slip differential front axle, powersynchro transmission and torque converter drive system
  • Load-sensing hydraulics
  • Z-bar linkage and greater breakout force for stronger digging performance
  • Three steering modes



CATERPILLAR

V417 VersaHandler TTC



The 10,648-lb. V417 VersaHandler TTC features the Bob-Tach attachment mounting system, which can use select attachments for large-frame skid-steer loaders, compact track loaders and all-wheel steer loaders.

  • 4,400-lb. load capacity
  • 17-ft. lift height
  • 75-hp turbocharged engine
  • 72.5-in.-wide frame
  • Universal joystick for precise control of attachment functions
  • Hydrostatic drive



Bobcat Co. - Doosan Infracore
