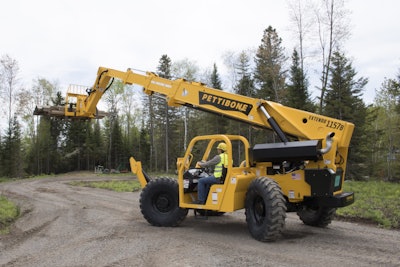

Delivering a maximum load capacity of 11,000 lb., Pettibone’s largest Extendo model, the 1157B, provides forward reach just over 42 ft., and maximum lift height of 57 ft. Single joystick, pilot operated controls control all boom and auxiliary-hydraulic functions. Automatic fork and load leveling eliminates the need for slave cylinders.
- Minimum turning radius:12 ft. 6 in.
- Max. transport height: less than 8-ft.
- Engine: 117-hp Cummins QSF 3.8 turbo diesel with SCR for Tier 4 Final compliance
- Transmission: 4-speed Carraro Powershift
- Max. travel speed: 20 miles per hour
