JCB 525-60 Telescopic Forklift

Side-mount engine permits a low boom pivot point for stability and all-around visibility in a 20-ft. telehandler with 5,500-lb. max capacity

A THL 525 60 30 cmyk 56cbf0fc5c87f
Jcb Logo 10825275

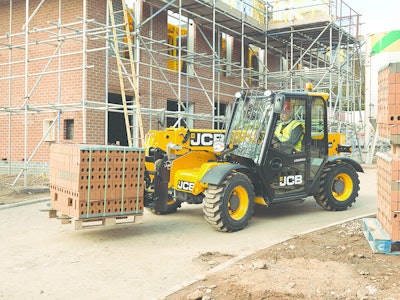

With a maximum lift height of 20 ft. and a load capacity of 5,500 lb., JCB’s 525-60 Hi-Viz compact telehandler is just 6 ft. wide and 6 ft. 2 in. tall. The side-mount engine permits a low boom pivot point for stability and good visibility to the front wheels, the rear, across the boom and to the forks.

  • Engine: 74-hp, 2.5L JCB diesel by Kohler, certified Tier 4 Final without a DPF or DEF engine
  • Two-stage hydrostatic transmission, travel speeds up to 15 mph
  • Three steering modes: front-wheel, all-wheel and crab steering
  • Optional limited slip differential for the front axle improves traction
  • 21 gpm hydraulic pump
  • Choice of JCB’s Q-fit carriage, Compact Toolcarrier option or skid-steer-compatible coupler
  • Choice of canopy or fully enclosed cab with air-conditioning option
  • All boom functions controlled by a single servo lever joystick, with proportional control of two-stage boom extension
