Caterpillar TH514D Telehandler

Caterpillar's TH514D Telehandler has the power and specifications to handle demanding jobs on any construction site

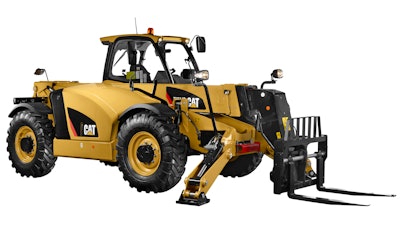

Cat TH514D TH marketing image CM20160819 28288 46983 58d2c3b01d96a

The TH514D telehandler has a rated load capacity of 11,021 lbs. and a maximum lift height of 45.5 ft.

  • 100-hp Cat C3.4B Tier 4 Final diesel engine and heavy-duty 4F/3R powershift transmission
  • Updated closed-center, load-sensing hydraulic system with variable-displacement, axial piston pump and flow-sharing valves to provide fast, consistent, multi-function performance
  • Four-wheel-drive system uses heavy-duty axles with planetary-reduction hubs, front limited-slip differential and dual-axle braking
  • Long-wheelbase stability and the ability to handle a range of work tools
  • Lifting lug added to the underside of the boom head
  • Standard manual IT (Integrated Tool Carrier) attachment coupler or optional hydraulic coupler
  • Standard auxiliary hydraulic circuit plumbed to the boom head for powered work tools, with a second front auxiliary circuit available
  • Ride control system dampens boom movement when traveling in rough terrain, and a boom-float system allows the boom to automatically follow terrain contours
  • Single multi-function joystick with integrated controls for auxiliary hydraulic functions and for shifting the transmission
  • Cat Operator Preferences feature allows operators to adjust machine response to individual preferences
  • Optional enclosed cab with heat, air conditioning, air suspension seat and interactive large display screen with electronic load charts, rear view camera and reversing object sensor
