Pettibone Next-Gen Traverse T944X Telehandler

Industry’s only traversing boom travels horizontally up to 70 in. on the 9,000-lb. telehandler’s frame to land loads at near full lift height

January 23, 2018

Pettibone Traverse Lift LLC

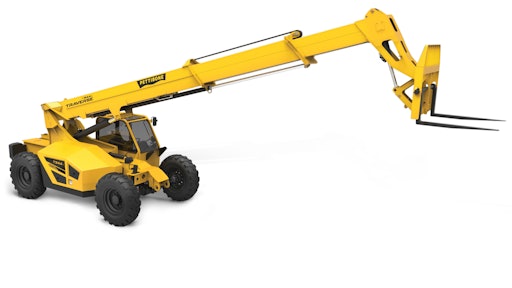

The boom on Pettibone's Traverse T944X telehandler is mounted on a moving carriage that shifts the entire boom forward up to 70 in. to land loads easily just 6 in. short of the forklift's 44-ft. 6-in. max. lift height.

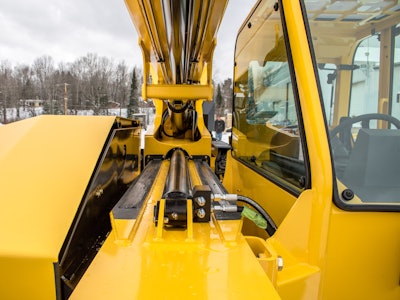

Pettibone’s 44-ft. 6-in. Traverse T944X has theTraverse carriage shifts the T944X boom forward up to 70 in. to simplify landing loads (shown retracted). Maximum capacity at max lift height and forward shift is 3,800 lb. industry’s only traversing boom, which travels horizontally up to 70 in. on the telehandler’s frame to land loads 44 ft. high. The 9,000-lb.-capacity T944X will lift 3,800 lb. to its max. height with the boom carriage extended fully forward. Cylinder cushioning has been introduced to dampen the stop at the end of strokes, both extending and retracting. Boom overlap has been nearly doubled from previous models to provide smoother operation and reduce contact force on wear pads. Bottom-mounted external extend cylinder also reduces load on wear pads by up to 50%, and improves service access to internal boom components.

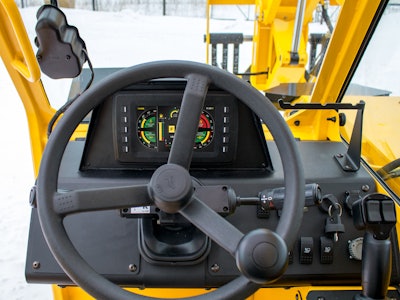

Maximum lift capacity: 9,000 lb.New analog/LCD gauge cluster comes standard on Pettibone's T944X telehandler. A 7-in. digital display with integrated back-up camera is optional.
Maximum lift height: 44 ft. 6 in.
Capacity at max. lift height: 8,000 lb.
74-hp Cummins QSF 3.8 Tier 4 Final diesel engine (117-hp option)
Full-time four-wheel drive with limited-slip front differential
Single lift cylinder improves operator sight lines
Single boom-extension chain eliminates the needs to balance dual chains
7-in. digital display with integrated back-up camera optional
