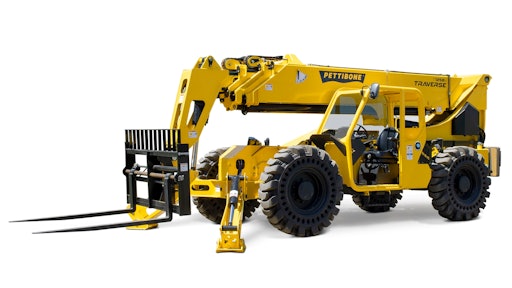

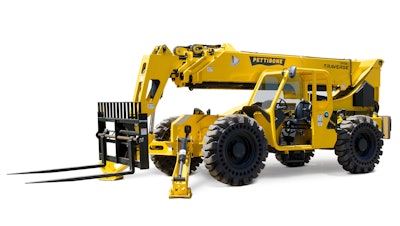

Pettibone Traverse T1258X 12,000-lb. Telehandler

Pettibone enters into the 12,000-lb. capacity market with introduction of Traverse T1258X telehandler

Pettibone Traverse T1258 X

Pettibone has entered the 12,000-lb. capacity market with the Traverse T1258X telehandler. The T1258X becomes part of the telehandler product line with a traversing boom carriage that can move loads by traveling horizontally.

  • Up to 70-in. of horizontal boom transfer
  • 117-hp Cummins QSF 3.8 Tier 4 Final diesel engine mounted on a side pod
  • Pettibone next gen X-Series platform
  • 4-section boom
  • Bottom-mounted external extend cylinder reduces load on wear pads
  • Drivetrain and axles optimized for greater tractive effort with minimal tradeoff on top end speed
  • Pintle hitch mount for towing
  • Full-time 4-wheel-drive with limited-slip front axle differential
  • Cab features ergonomic seat, pedal, joystick and steering wheel positions; standard analog/LCD gauge cluster; optional 7-in. digital display with integrated back-up camera
  • Dana VDT12000 Powershift transmission with three speeds, forward and reverse
  • Single lift cylinder improves operator sight lines
  • Twin hydraulic lines for tilt and auxiliary plumbing
  • All-steel fuel and hydraulic tanks
  • Lift and landing height: 58 ft. 6 in.
  • Max forward reach: 47 ft. 10 in.
  • Turning radius: 14 ft. 4 in.
