Extendo 1056X Telehandler

Pettibone adds 10,000-lb.-capacity telehandler to X-Series.

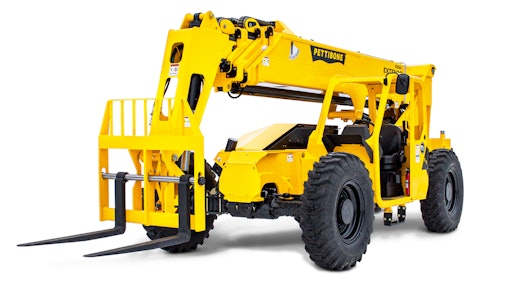

Pettibone Extendo 1056 X

Pettibone introduces the Extendo 1056X telehandler to its X-Series lineup, providing a 10,000-lb.-capacity machine capable of reaching lift heights of 56 ft.

  • 74-hp Cummins QSF 3.8 Tier 4 Final diesel engine with DOC muffler and no DEF
  • Optional Deutz 74-hp Tier 4 Final engine or 117-hp Cummins engine
  • 4-section boom
  • Bottom-mounted external extend cylinder
  • Cylinder cushioning dampens end of strokes
  • Single lift cylinder with twin non-tensioned hydraulic lines improves operator sight lines
  • Full-time 4-wheel drive with limited slip front axle differential
  • Dana VDT12000 Powershift transmission offers three speeds, forward and reverse
  • Extendo operator cab with ergonomic seat, pedal, joystick and steering wheel positions
  • Analog/LCD gauge cluster; optional 7-in. digital display with integrated back-up camera
  • All-steel fuel and hydraulic tanks built to resist damage
  • 30-gal. fuel tank
  • Lockable fuel-fill
  • Turning radius: 14 ft. 4 in.
  • Max forward reach: 40 ft.
  • Max lift height: 56 ft.
