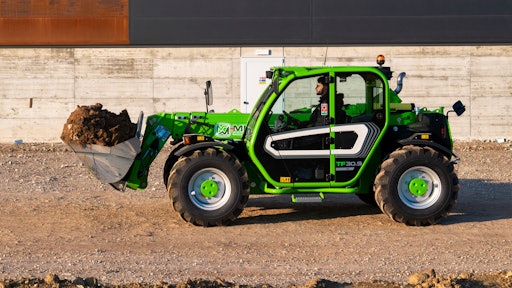

TF30.9 Compact Telehandler

Merlo's TF30.9 is designed where a small machine with power and reach is needed.

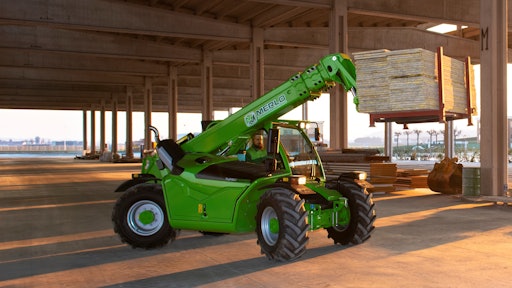

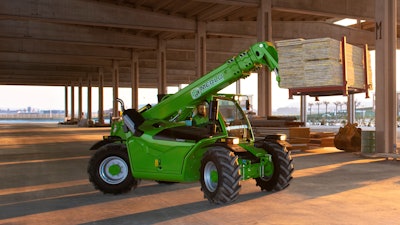

Ams Merlo P30 9 With Forks
Merlo America
Merlo Logo (002)

Merlo’s TF30.9 telehandler represents the ideal compromise between performance and size for any industry looking for versatility in their material handling applications. The TF30.9 delivers 6,600 lbs. maximum load capacity and a 28 ft., 3 in. lift. Its low center of gravity increases machine stability and supports excellent traction.

Operators can expect a maximum level of ergonomic functionality with the placement of controls and seating comfort in the spacious cab. Operating and safety parameters are delivered in real-time to the highly visible LCD. Conveniently located on the steering column and the joystick is the reverse shuttle. The eight-vent air system (AC/heat) ensures the operator receives quality air flow at all times.

The load sensing and flow sharing hydraulic system with its variable displacement features Merlo’s CDC (Load Dynamic Control) safety system. It recognizes the attachment, measures the load, and then maximizes the speed of the hydraulic movements. The TF30.9 comes standard with a hydrostatic transmission (maximum speed 25 mph) and 4WD with three steering modes. The 115HP Deutz engine, with Eco Power Drive system (controls and adjusts fuel consumption), is mounted on the side of the cab. Air filters are side mounted also for increased air efficiency, air flow, and cleaner air quality.

The hydraulic lines are housed inside the quick response no-flex boom reducing jobsite wear and tear. The TF30.9 is equipped with the Tac-lock system for attachments, controlled from the cab. Two hydraulic connections and an electrical socket on the boom increase the TF30.9 compatibility with many attachments.
