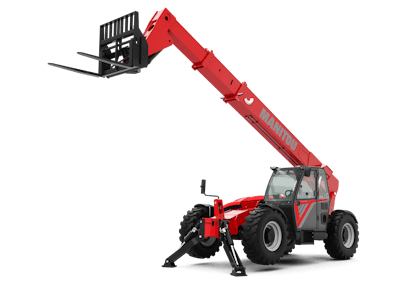

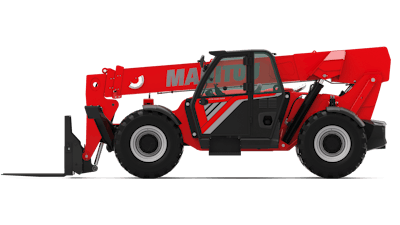

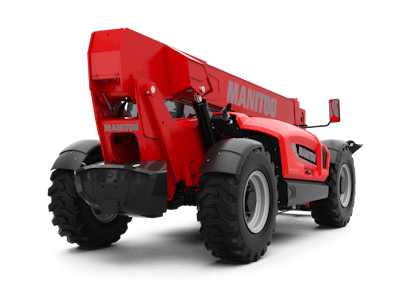

Better meeting the needs of specific rental businesses and construction fleet managers, the MTA 1242 MAX and the MTA 1242 MAX E74 telehandler models are the latest to join the lineup of construction telehandlers from Manitou. These new telehandlers feature heavy-duty outriggers that increase lifting capacity between 2,500 and 4,000 lbs. at common mid-range working heights and reach. The MTA 1242 MAX E74 further allows for additional efficiency and reduced lifetime maintenance related to emissions systems designed with a 74 horsepower engine.
“The MTA 1242 MAX exists in one of the most in-demand size classes for construction telehandlers, with a max capacity of 12,000 lbs. and a max lifting height of 42 ft. — what we’ve done is added further flexibility in lifting capacity and engine power to meet the needs of various operators,” says Steve Kiskunas, product manager, for telescopic telehandlers, Manitou. “The strength of the outriggers increases that critical mid-range operating capacity, while the 74-horsepower model drives added efficiency without sacrificing any capacity.”
Manitou North America LLC
- The MTA cab has been completely revamped with 30 percent increased forward visibility thanks to the redesigned “Superview” FOPS. This design removes sightline obstructions and gives operators a clearer perspective to the work area. It also includes an innovative frame that retains the integrity of the cab and gives operators optimized views to the load and attachment in use — even when placing materials at height.
- Machine access is also simplified with EasyStep: a cutout in the cab floor that allows entrance with reduced risk of slipping. It also provides a clear sightline down to the step for a safer and more deliberate exit.
- The perpendicular mounting of the engine to the driveline provides access to both sides of the engine to reach the fuel filters, starter, alternator, engine oil filter, engine oil fill, and coolant reservoir. This simplifies regular service and increases cost savings related to maintenance.
- The load-sensing hydraulic system improves smooth operation, responsiveness and accuracy. This combined with the upgraded stabilization system saves time on busy workdays, allowing for multiple simultaneous movements at all boom levels to facilitate proper material alignment.
- Greater capacity at forward outreach is gained through a longer wheelbase and a new frame design to improve overall stability to place materials deeper into buildings. Ground clearance is also increased up to 19”, and a new curved engine hood helps improve visibility down the right side.
Manitou North America LLC - The automatic five-speed powershift transmission allows for smoother transition between gears and reaching speeds of 22 mph. The new automatic-mode allows newer operators and those in rental to focus on performance without shifting gears. The operator can switch to manual mode if that is their preference with the push of a button.
- A automatic parking brake has been added that automatically applies when the machine is stopped for more than 3 seconds. The brake can be released with a switch or by use of the accelerator pedal.
The all-new MTA models also include an intelligent dashboard with an integrated pop-up information system, providing guided operation assistance. Over 57 messages help the operator understand proper machine use. Messages are available in English, Spanish and French. All units are also connected with the EasyManager telematics system to view real-time machine data, location and service/warning codes to stay on top of performance.
