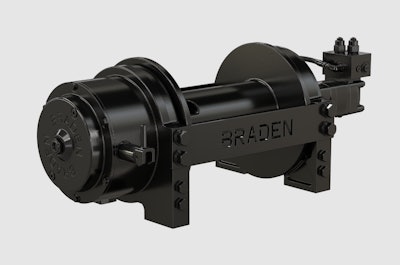

BRADEN has expanded its TR Series with the TR25 and TR35 hydraulic planetary winches, designed for trailer manufacturers, towing and recovery fleets, utility operations and forestry equipment.
Both models feature BRADEN’s planetary gear technology, providing high line speeds, continuous-duty performance, and efficient power transfer. The compact, low-profile design fits tight spaces, and the standard 18-inch mounting bolt pattern allows for direct replacement of existing hydraulic winches.
The TR25 offers a 25,000-lb rated line pull with options for short or long drums and 9/16” or 5/8” rope, while the TR35 delivers 35,000 lb. with capacity for 155 ft of 3/4” rope. Both winches use oil bath lubrication, low-friction drum bearings and durable urethane brake seals for reliability and reduced maintenance. Operators can choose manual or air-actuated freespool engagement.
The TR25 and TR35 are SAE J706-compliant and aim to provide versatile, dependable pulling power with simplified installation and service for OEMs, upfitters and end users.
