Low-Profile Hydraulic Detachable Gooseneck (HDG) Trailer

XL Specialized Trailers to Introduce Low-Profile HDG Paver Trailer at CONEXPO-CON/AGG

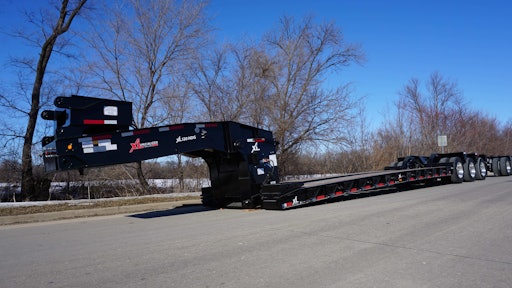

Paver Trailer 4

The Low-profile Hydraulic Detachable Gooseneck (HDG) trailer can transport a multitude of machines and is specifically designed to haul paving equipment.

  • Features a 110,000-lb. capacity in 12 ft., an overall length of 53 ft. and overall width of 8.5 ft.
  • Tapered front beams offer an extremely low load angle of only 4° and 42-in. flip ramps provide extra loading assistance
  • 13-ft. gooseneck has a swing clearance of 110 in., a relief cut-out for added space between the truck and trailer and a sloped nose to protect the air and electric connections from damage
  • Five-position ride height allows the deck to be leveled as needed based on neck position and load
  • 26-ft.-long main deck with Apitong decking features a loaded deck height of 24 in. and an 8-in. ground clearance
  • 14-ft.-long rear deck with a 40-in. loaded deck height
  • Main deck offers seven pairs of bent D-rings along the outer beams, 13 chain drops per side on the outer rails, four chain drops around the toolbox and swing-out outriggers on 24-inch centers.
  • Toolbox located at front of main deck provides a storage area for chains and other items
  • Deep bucket well in rear provides an area for an excavator bucket to ride safely without detaching the lower boom section
  • Standard lighting kit includes a work light in the upper deck to increase visibility when monitoring the load at night
