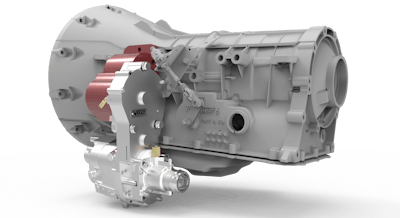

The DTM70 PTO-driven direct transmission-mounted rotary screw air compressor system can produce up to 70 cfm and up to 175 psi at 100% duty cycle. It mounts directly to the PTO of any 4WD or 2WD Ford F-250 to F-550 Super Duty with a 6.7L Power Stroke diesel engine.
- Cab-mounted digital control box automatically idles up the truck engine to match air demand, and automatically warms the compressor as needed
- Mechanical regulator remotely mounted on the firewall in the engine compartment for easy access for setup/adjustment
- Lliquid-to-liquid cooler integrates into vehicle's cooling system and mounts under the radiator
- Air/oil separator tank mounts to the truck frame rail
- Heavy-duty air filter remotely installed on the vehicle for easy access
